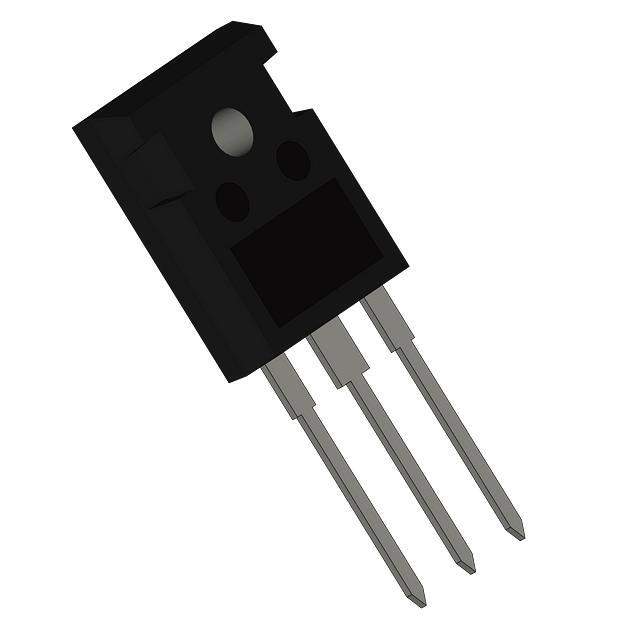

The Infineon Technologies 1065386-IPW65R190C7XKSA1 is a N-channel MOSFET transistor designed for use in discrete semiconductor products such as FETs and MOSFETs.

• Series: CoolMOS™ C7
• Drain to Source Voltage (Vdss): 650 V
• Continuous Drain Current (Id) @ 25°C: 13A (Tc)
• Rds On (Max) @ Id, Vgs: 190mOhm @ 5.7A, 10V
• Power Dissipation (Max): 72W (Tc)
• Gate Charge (Qg) (Max) @ Vgs: 23 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds: 1150 pF @ 400 V
• Mounting Type: Through Hole
• Package/Case: TO-247-3
• Temperature Range: -55°C to 150°C (TJ)
• Alternative Parts: IPW60R230P6FKSA1, STW18N65M5, IPW65R280C6FKSA1, IPW65R310CFDFKSA1, STW18NM60N, STW19NM50NIPW65R190C7 and SP001080142
