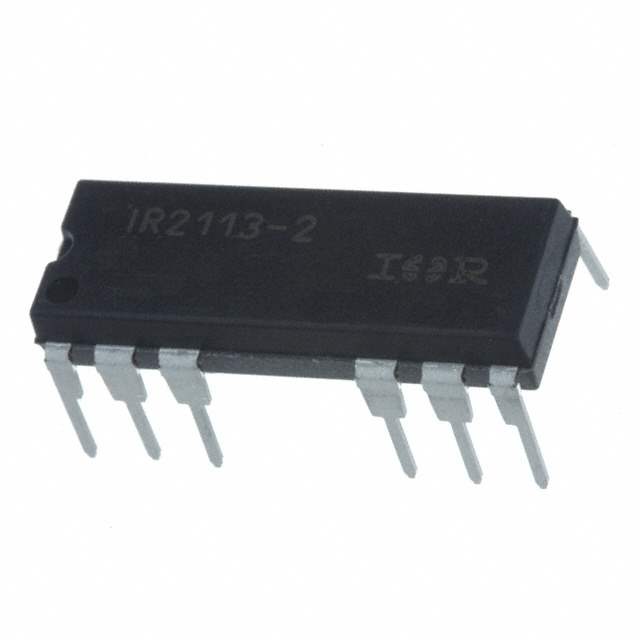

IR2113-2 Real Image
Same model may have multiple batches, images only for reference.

IR2113-2

Part No IR2113-2
Manufacturer Infineon Technologies
Catalog PMIC - Gate Drivers
Description IC MOSFET DRVR HI/LO SIDE 16-DIP
Datasheet
IR2113-2 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Tube/Rail
Status Obsolete(EOL)
Driven Configuration Half-Bridge
Channel Type Independent
Number of Drivers 2
Gate Type IGBT, N-Channel MOSFET
Supply Voltage - Operating 3.3 V to 20 V
Logic Voltage - VIL, VIH 6V, 9.5V
Current - Peak Output (Source, Sink) 2A, 2A
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 600V
Rise and Fall Time 25ns, 17ns
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting Through Hole
Case / Package 14-PDIP
Win Source Part Number 125712-IR2113-2
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IR2113-2 CAD Model

Description

The IR2113-2 is a half-bridge gate driver IC from Infineon Technologies.

  • Application: High voltage applications
  • Channels: Two
  • Gate Type: IGBTs and N-Channel MOSFETs
  • Gate Voltage: ±20V (max)
  • High Side Voltage: 600V (max)
  • Peak Output Current (Source, Sink): 2A
  • Rise Time: 25ns
  • Fall Time: 17ns
  • Package Type: 14-PDIP
  • Operating Temperature Range: -40°C to 150°C (TJ)
