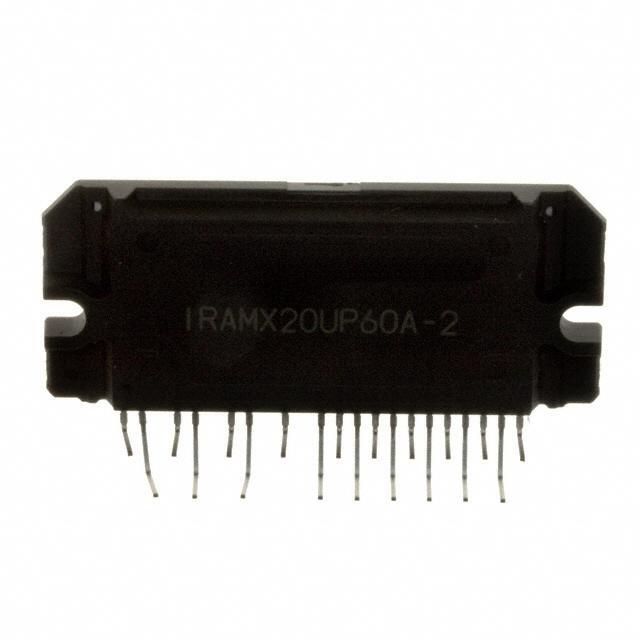

IRAMX20UP60A Infineon Technologies
Same model may have multiple batches, images only for reference.

IRAMX20UP60A

Part No IRAMX20UP60A
Manufacturer Infineon Technologies
Catalog Power Drivers - Modules
Description 20A, 600V with open Emitter Pins | IC PWR HYBRID 600V 20A SIP2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Status Obsolete
Type IGBT
Configuration 3 Phase
Current 20A
Voltage 600V
Voltage - Isolation 2000Vrms
Manufacturer Package 23-PowerSIP Module, 19 Leads, Formed Leads
Manufacturer Pack Quantity 8
MSL Level 1 (Unlimited)
Win Source Part Number 1186845-IRAMX20UP60A
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IRAMX20UP60A CAD Model

Description

The Infineon Technologies IRAMX20UP60A is a three-phase IGBT module designed for use in motor control applications.

  • Manufacturer: Infineon Technologies
  • Product Name: IRAMX20UP60A
  • Type: Three-phase IGBT module
  • Application: Motor control applications
  • Maximum Voltage: 600V
  • Current Rating: 20A
  • Voltage Isolation: 2000Vrms
  • Package: 23-PowerSIP Module, 19 Leads, Formed Leads
  • Status: Obsolete
  • Supply and Demand: Limited
