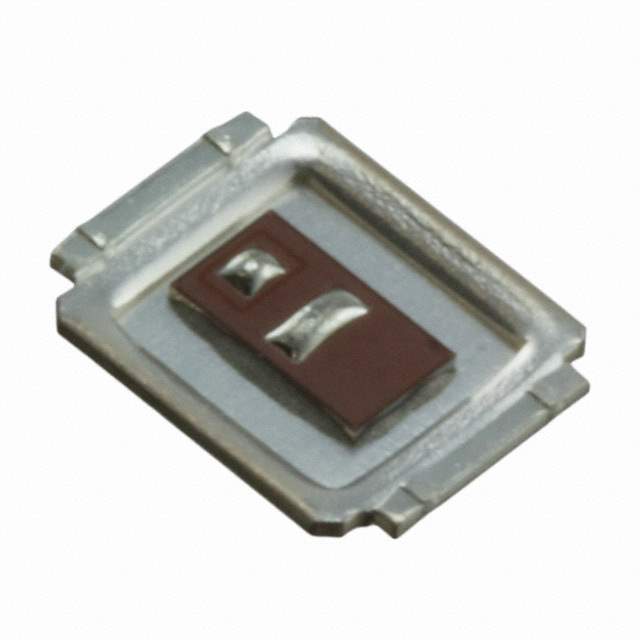

IRF6709S2TR1PBF

Name: IRF6709S2TR1PBF
Brand: Infineon Technologies
SKU: 461735
Availability: InStock
Rating: 4.77 (3 reviews)

Part No	IRF6709S2TR1PBF
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 25V 12A DIRECTFET-S1
Datasheet	IRF6709S2TR1PBF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your List. List Name:
Need Help

Products specifications

SnapMagic 3D Model
Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Reel - TR
Status	Obsolete(EOL)
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	25V
Continuous Drain Current at 25°C	12A (Ta), 39A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Gate-Source Threshold Voltage	2.35V @ 25μA
Max Gate Charge	12nC @ 4.5V
Max Input Capacitance	1010pF @ 13V
Maximum Gate-Source Voltage	±20V
Power Dissipation (Max)	1.8W (Ta), 21W (Tc)
Maximum Rds On at Id,Vgs	7.8 mOhm @ 12A, 10V
Temperature Range - Operating	-55°C to 175°C (TJ)
Mounting	SMD (SMT)
Case / Package	DIRECTFET S1
Dimension	DirectFET Isometric S1
Win Source Part Number	1046560-IRF6709S2TR1PBF
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	1k pcs

Description

The Infineon Technologies IRF6709S2TR1PBF is an obsolete (EOL) N-channel MOSFET transistor that is packaged in a DirectFET S1 case. The high power dissipation transistor has a maximum power dissipation of 1.8W (Ta), 21W (Tc) and is suitable for a range of applications that require high power handling. It has a high continuous drain current at 25°C of 12A (Ta), 39A (Tc) and is a reliable and efficient component for electronic circuits.
