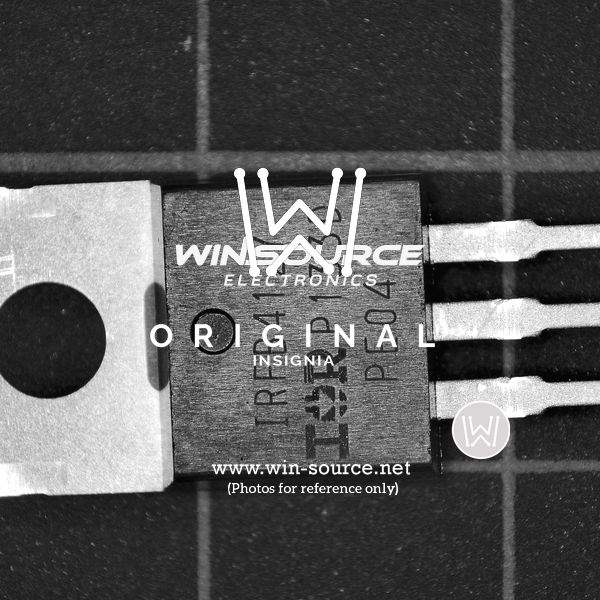

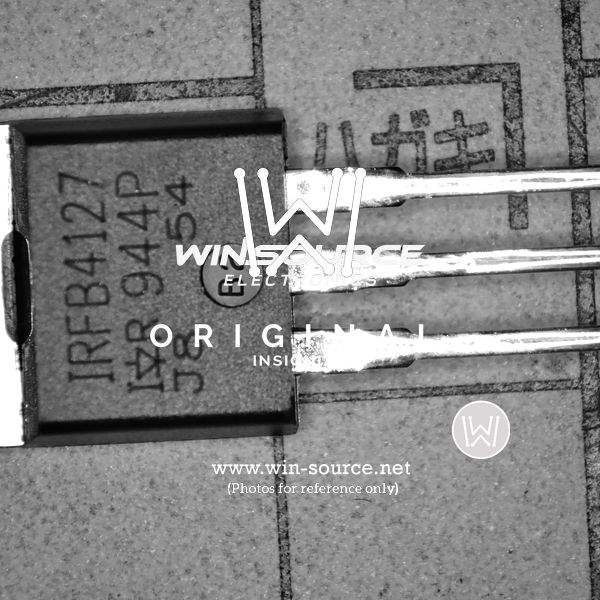

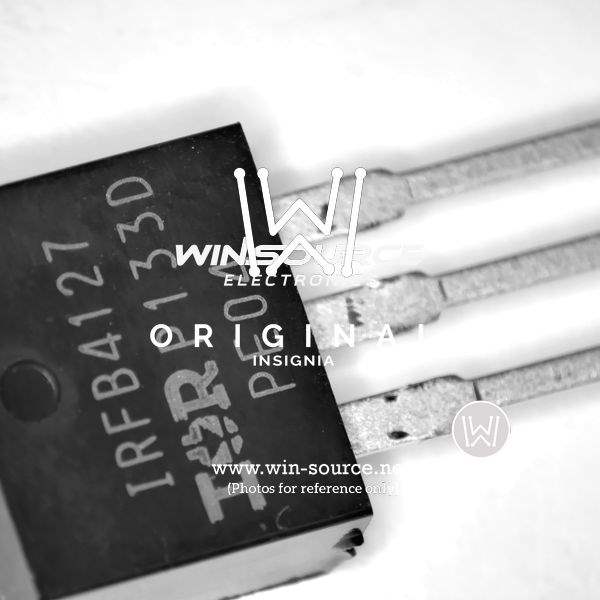

Same model may have multiple batches, images only for reference.

IRFB4127PBF

Name: IRFB4127PBF
Brand: Infineon Technologies
SKU: 160278
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IRFB4127PBF
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 200V 76A TO-220AB
Datasheet	IRFB4127PBF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Tube/Rail
Status	Active
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	200V
Continuous Drain Current at 25°C	76A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Gate-Source Threshold Voltage	5V @ 250μA
Max Gate Charge	150nC @ 10V
Max Input Capacitance	5380pF @ 50V
Maximum Gate-Source Voltage	±20V
Power Dissipation (Max)	375W (Tc)
Maximum Rds On at Id,Vgs	20 mOhm @ 44A, 10V
Temperature Range - Operating	-55°C to 175°C (TJ)
Mounting	Through Hole
Case / Package	TO-220AB
Dimension	TO-220-3
Win Source Part Number	089103-IRFB4127PBF
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian IRFB4127PBF CAD Model

Alternative Products

Description

The Infineon Technologies IRFB4127PBF is a N-channel MOSFET with a drain-source breakdown voltage of 200V and a maximum continuous drain current of 76A (Tc).

Drain-Source Breakdown Voltage: 200V
Maximum Continuous Drain Current: 76A (Tc)
Power Dissipation: 375W (Tc)
Maximum Rds On: 20 mOhm @ 44A, 10V
Gate-Source Threshold Voltage: 5V @ 250μA
Maximum Gate Charge: 150nC @ 10V
Maximum Gate-Source Voltage: ±20V
Maximum Input Capacitance: 5380pF @ 50V
Application: Discrete semiconductor products
Popularity: High
