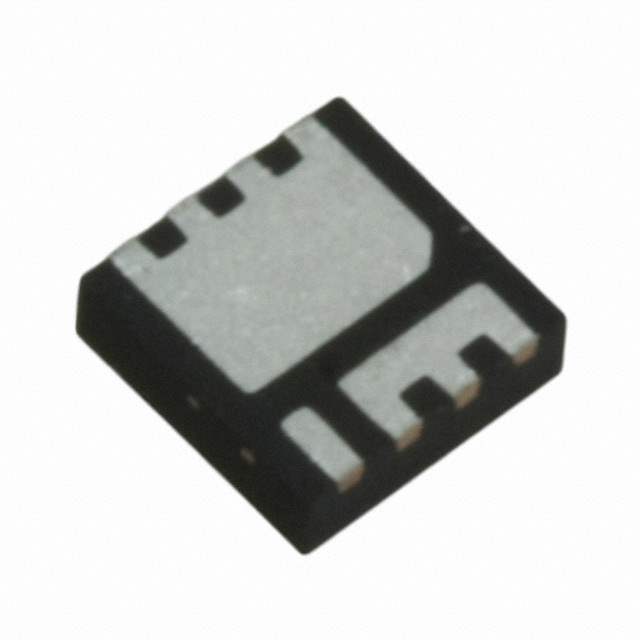

IRFH5053TRPBF Real Image
Same model may have multiple batches, images only for reference.

IRFH5053TRPBF

Part No IRFH5053TRPBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 100V 9.3A PQFN56
Datasheet
IRFH5053TRPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 100V
Continuous Drain Current at 25°C 9.3A (Ta), 46A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 4.9V @ 100μA
Max Gate Charge 36nC @ 10V
Max Input Capacitance 1510pF @ 50V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 3.1W (Ta), 8.3W (Tc)
Maximum Rds On at Id,Vgs 18 mOhm @ 9.3A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package PQFN (5x6) Single Die
Dimension 8-PowerVDFN
Win Source Part Number 069474-IRFH5053TRPBF
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian IRFH5053TRPBF CAD Model

Description

The Infineon Technologies 069474-IRFH5053TRPBF is an N-Channel MOSFET with a drain-source breakdown voltage of 100V and a continuous drain current of 9.3A @ 25°C.

  • Maximum Power Dissipation: 3.1W (Ta), 8.3W (Tc)
  • Maximum Rds On at Id,Vgs: 18 mOhm @ 9.3A, 10V
  • Package: PQFN (5x6) Single Die
  • Application: Discrete Semiconductor Products
  • Temperature Range: -55°C to 150°C (TJ)
  • Maximum Gate Charge: 36nC @ 10V
  • Packaging: reel - TR
  • Popularity: Medium
  • Supply and Demand Status: Sufficient
