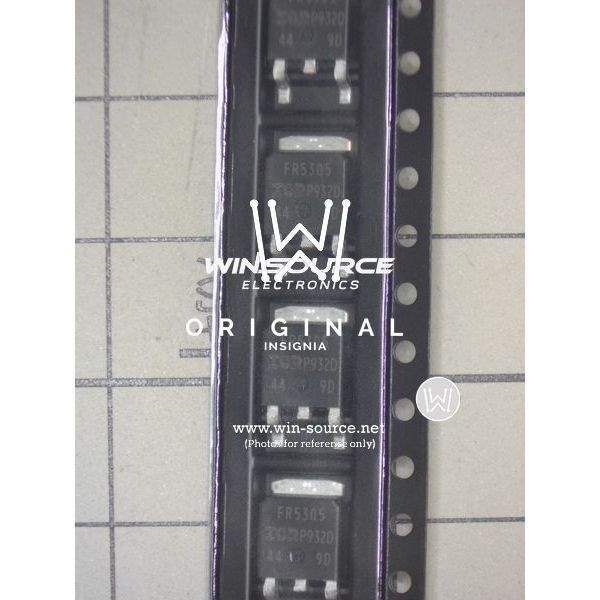

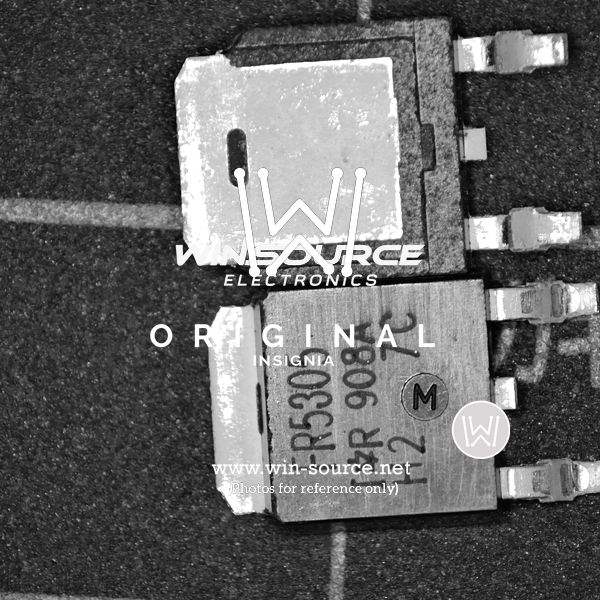

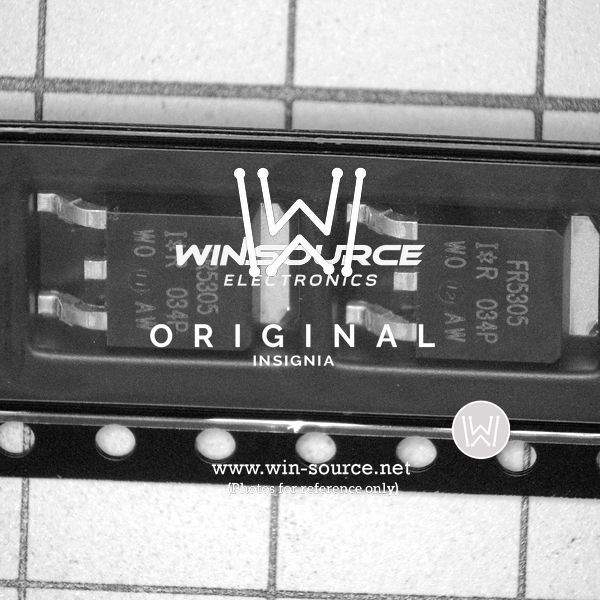

IRFR5305TRPBF

Name: IRFR5305TRPBF
Brand: Infineon Technologies
SKU: 160820
Availability: InStock
Rating: 4.91 (293 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IRFR5305TRPBF
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET P-CH 55V 31A DPAK
Datasheet	IRFR5305TRPBF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Reel - TR
Status	Active
Polarity	P-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	55V
Continuous Drain Current at 25°C	31A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Gate-Source Threshold Voltage	4V @ 250μA
Max Gate Charge	63nC @ 10V
Max Input Capacitance	1200pF @ 25V
Maximum Gate-Source Voltage	±20V
Power Dissipation (Max)	110W (Tc)
Maximum Rds On at Id,Vgs	65 mOhm @ 16A, 10V
Temperature Range - Operating	-55°C to 175°C (TJ)
Mounting	SMD (SMT)
Case / Package	D-Pak
Dimension	TO-252-3, DPak (2 Leads + Tab), SC-63
Win Source Part Number	001283-IRFR5305TRPBF
Family Name	IRFR5305
Introduction Date	February 19, 2004
ECCN	EAR99
Country of Origin	Mexico
Halogen Free	Compliant
Estimated EOL Date	2024
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian IRFR5305TRPBF CAD Model

Alternative Products

Description

The IRFR5305TRPBF is a P-Channel MOSFET from Infineon Technologies.

Power Dissipation: 110W (Tc)
Drain-Source Breakdown Voltage: 55V
Continuous Drain Current: 31A (Tc) @ 25°C
Maximum Rds On at Id,Vgs: 65 mOhm @ 16A, 10V
Gate-Source Threshold Voltage: 4V @ 250μA
Maximum Gate Charge: 63nC @ 10V
Package: D-Pak
Dimension: TO-252-3, DPak (2 Leads + Tab), SC-63
Maximum Input Capacitance: 1200pF @ 25V
Maximum Gate-Source Voltage: ±20V
Popularity: High
Supply and Demand Status: Sufficient
Estimated EOL Date: 2024
