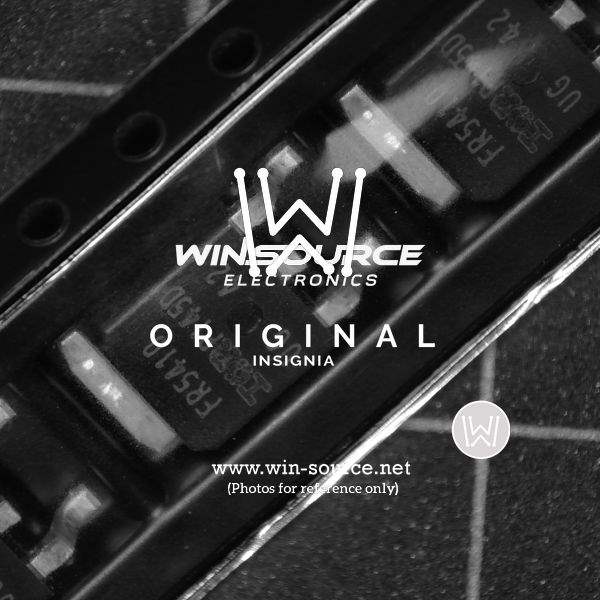

Same model may have multiple batches, images only for reference.

IRFR5410TRPBF

Name: IRFR5410TRPBF
Brand: Infineon Technologies
SKU: 160825
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IRFR5410TRPBF
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	Trans MOSFET P-CH Si 100V 13A 3-Pin(2+Tab) DPAK T/R / MOSFET P-CH 100V 13A DPAK
Datasheet	IRFR5410TRPBF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Reel - TR
Status	Active
Polarity	P-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	100V
Continuous Drain Current at 25°C	13A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Gate-Source Threshold Voltage	4V @ 250μA
Max Gate Charge	58nC @ 10V
Max Input Capacitance	760pF @ 25V
Maximum Gate-Source Voltage	±20V
Power Dissipation (Max)	66W (Tc)
Maximum Rds On at Id,Vgs	205 mOhm @ 7.8A, 10V
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	D-Pak
Dimension	TO-252-3, DPak (2 Leads + Tab), SC-63
Win Source Part Number	001284-IRFR5410TRPBF
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Family Name	IRFR5410
Introduction Date	June 01, 2004
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian IRFR5410TRPBF CAD Model

Alternative Products

Description

The IRFR5410TRPBF is a P-Channel MOSFET from Infineon Technologies.

Package: D-Pak
Dimension: TO-252-3, DPak (2 Leads + Tab), SC-63
Drain-Source Breakdown Voltage: 100V
Continuous Drain Current: 13A (Tc) @ 25°C
Maximum Rds On: 205 mOhm @ 7.8A, 10V
Gate-Source Threshold Voltage: 4V @ 250μA
Maximum Gate Charge: 58nC @ 10V
Maximum Input Capacitance: 760pF @ 25V
Halogen-Free Compliant: Yes
Popularity: High
Supply and Demand Status: Sufficient
