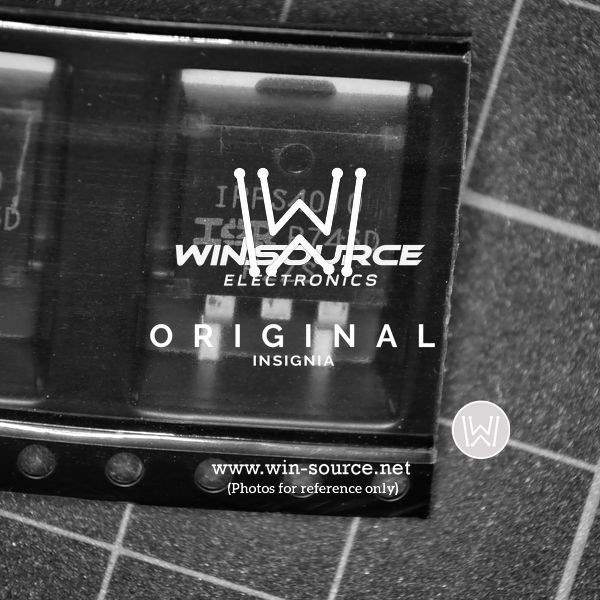

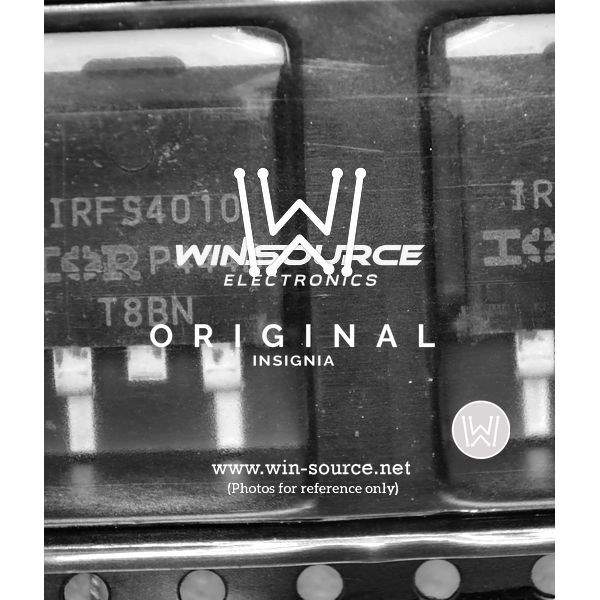

Same model may have multiple batches, images only for reference.

IRFS4010TRLPBF

Name: IRFS4010TRLPBF
Brand: Infineon Technologies
SKU: 160904
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IRFS4010TRLPBF
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	Trans MOSFET N-CH 100V 180A 3-Pin(2+Tab) D2PAK T/R / MOSFET N-CH 100V 180A D2PAK
Datasheet	IRFS4010TRLPBF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Reel - TR
Status	Active
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	100V
Continuous Drain Current at 25°C	180A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Gate-Source Threshold Voltage	4V @ 250μA
Max Gate Charge	215nC @ 10V
Max Input Capacitance	9575pF @ 50V
Maximum Gate-Source Voltage	±20V
Power Dissipation (Max)	375W (Tc)
Maximum Rds On at Id,Vgs	4.7 mOhm @ 106A, 10V
Temperature Range - Operating	-55°C to 175°C (TJ)
Mounting	SMD (SMT)
Case / Package	D2PAK
Dimension	TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Win Source Part Number	121166-IRFS4010TRLPBF
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Family Name	IRFS4010
Introduction Date	October 06, 2008
ECCN	EAR99
Country of Origin	China, Mexico, Singapore
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian IRFS4010TRLPBF CAD Model

Alternative Products

Description

The Infineon Technologies 121166-IRFS4010TRLPBF is an N-channel MOSFET with a drain-source breakdown voltage of 100V and continuous drain current of 180A (Tc) at 25°C.

Power Dissipation (Max): 375W (Tc)
Max Rds on @ Id,Vgs: 4.7 mOhm @ 106A, 10V
Gate-Source Threshold Voltage: 4V @ 250μA
Max Gate Charge: 215nC @ 10V
Application: discrete semiconductor products
Popularity: High
Status: active part
Availability: alternative parts available
Supply and Demand Status: balanced
Halogen-Free: compliant
