Same model may have multiple batches, images only for reference.

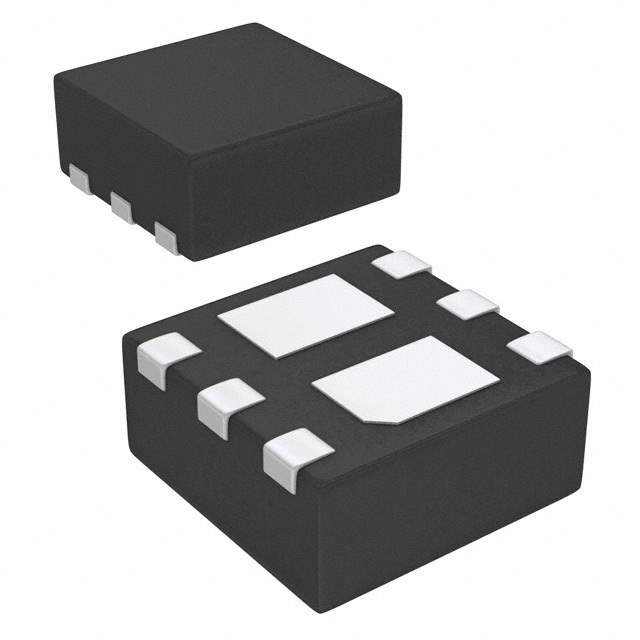

IRLHS6276TRPBF Real Image
Same model may have multiple batches, images only for reference.

IRLHS6276TRPBF

Part No IRLHS6276TRPBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2N-CH 20V 4.5A PQFN
Datasheet
IRLHS6276TRPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
FET Type 2 N-Channel (Dual)
FET Feature Logic Level Gate
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 4.5A
Maximum Rds On at Id,Vgs 45 mOhm @ 3.4A, 4.5V
Gate-Source Threshold Voltage 1.1V @ 10μA
Max Gate Charge 3.1nC @ 4.5V
Max Input Capacitance 310pF @ 10V
Maximum Power Dissipation 1.5W
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 6-PQFN (2x2)
Win Source Part Number 1047546-IRLHS6276TRPBF
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian IRLHS6276TRPBF CAD Model

Description

The Infineon Technologies IRLHS6276TRPBF is a dual N-Channel MOSFET designed for use in high-performance power conversion applications.

  • Maximum Power Dissipation: 1.5W
  • Drain-Source Breakdown Voltage: 20V
  • Continuous Drain Current: 4.5A
  • Gate-Source Threshold Voltage: 1.1V @ 10μA
  • Maximum Gate Charge: 3.1nC @ 4.5V
  • Maximum Input Capacitance: 310pF @ 10V
  • Package: 6-PQFN (2x2)
