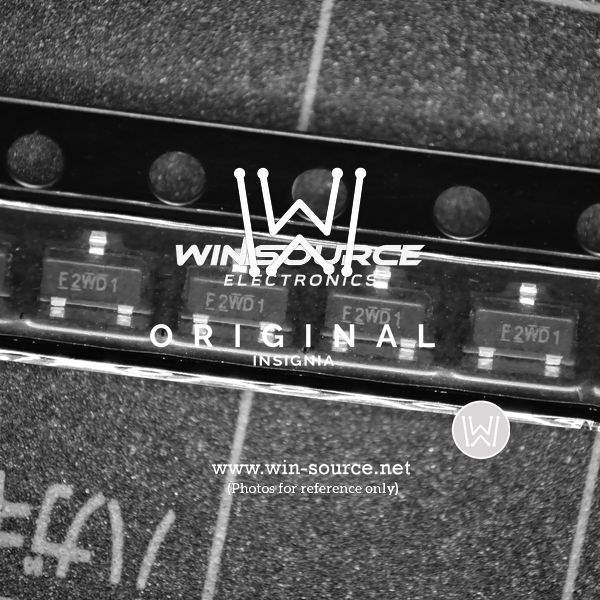

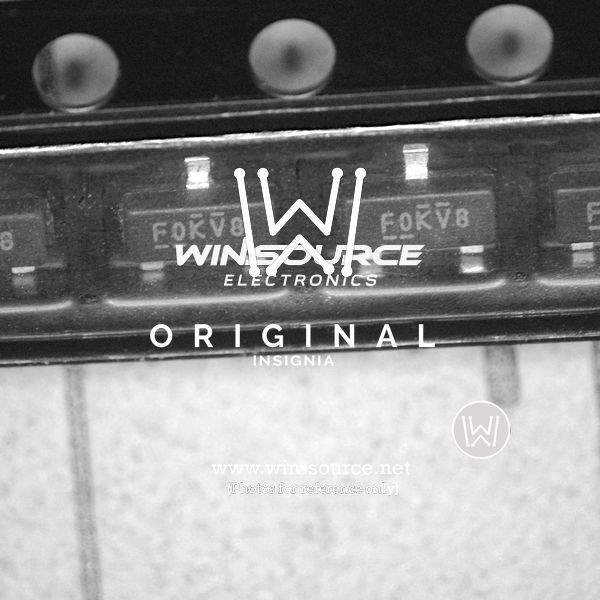

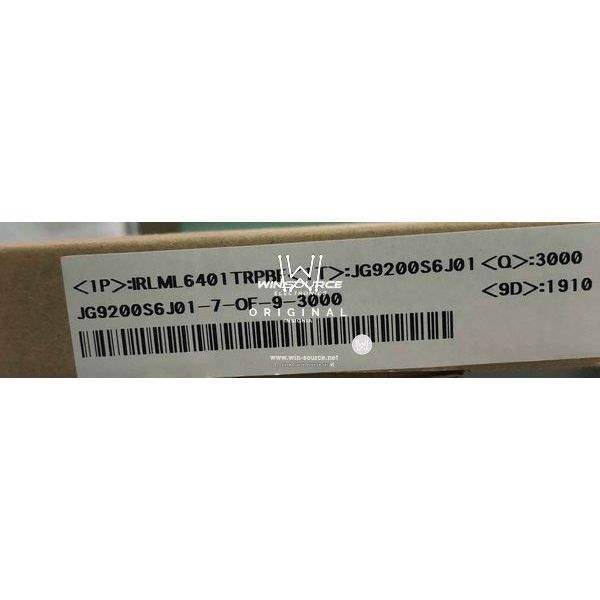

Same model may have multiple batches, images only for reference.
IRLML6401TRPBF Infineon Technologies IRLML6401TRPBF real image400 IRLML6401TRPBF real image401 IRLML6401TRPBF Real Image1 IRLML6401TRPBF Real Image2 IRLML6401TRPBF Real Image3 IRLML6401TRPBF Real Image4 IRLML6401TRPBF Real Image5 IRLML6401TRPBF Real Image6 IRLML6401TRPBF Real Image7 IRLML6401TRPBF Real Image8 IRLML6401TRPBF Real Image9 IRLML6401TRPBF label picture IRLML6401TRPBF label picture 2 IRLML6401TRPBF label picture 3 IRLML6401TRPBF label picture 4 IRLML6401TRPBF real image
IRLML6401TRPBF Infineon Technologies IRLML6401TRPBF real image400 IRLML6401TRPBF real image401 IRLML6401TRPBF Real Image1 IRLML6401TRPBF Real Image2 IRLML6401TRPBF Real Image3 IRLML6401TRPBF Real Image4 IRLML6401TRPBF Real Image5 IRLML6401TRPBF Real Image6 IRLML6401TRPBF Real Image7 IRLML6401TRPBF Real Image8 IRLML6401TRPBF Real Image9 IRLML6401TRPBF label picture IRLML6401TRPBF label picture 2 IRLML6401TRPBF label picture 3 IRLML6401TRPBF label picture 4 IRLML6401TRPBF real image
Same model may have multiple batches, images only for reference.

IRLML6401TRPBF

Part No IRLML6401TRPBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 12V 4.3A SOT-23
Datasheet
IRLML6401TRPBF Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 12V
Continuous Drain Current at 25°C 4.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.8V, 4.5V
Gate-Source Threshold Voltage 950mV @ 250μA
Max Gate Charge 15nC @ 5V
Max Input Capacitance 830pF @ 10V
Maximum Gate-Source Voltage ±8V
Power Dissipation (Max) 1.3W (Ta)
Maximum Rds On at Id,Vgs 50 mOhm @ 4.3A, 4.5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package Micro3/SOT-23
Dimension TO-236-3, SC-59, SOT-23-3
Win Source Part Number 017774-IRLML6401TRPBF
Family Name IRLML6401
Introduction Date November 08, 2004
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian IRLML6401TRPBF CAD Model

Description

The Infineon Technologies IRLML6401TRPBF is a P-channel MOSFET transistor with a drain-source breakdown voltage of 12V and a continuous drain current of 4.3A.

  • Drain-Source Breakdown Voltage: 12V
  • Continuous Drain Current: 4.3A
  • Gate-Source Threshold Voltage: 950mV @ 250μA
  • Maximum Gate Charge: 15nC @ 5V
  • Maximum Input Capacitance: 830pF @ 10V
  • Maximum Gate-Source Voltage: ±8V
  • Package: Micro3/SOT-23
  • Dimension: TO-236-3, SC-59, SOT-23-3
  • Drive Voltage: 1.8V and 4.5V for maximum Rds On and minimum Rds On
  • Supply and Demand Status: Sufficient
