Same model may have multiple batches, images only for reference.

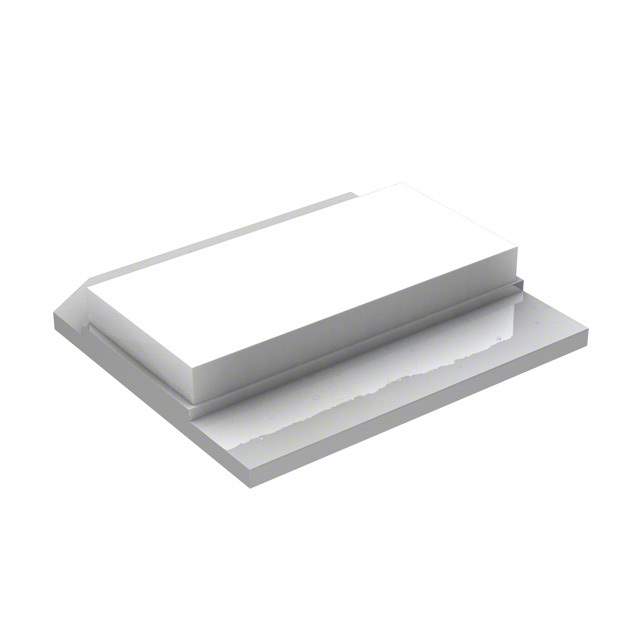

PTFA082201F V1 Real Image
Same model may have multiple batches, images only for reference.

PTFA082201F V1

Part No PTFA082201F V1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description IC FET RF LDMOS 220W H-37260-2
Datasheet
PTFA082201F V1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Tray
Transistor Polarity LDMOS
Frequency 894MHz
Gain 18dB
Voltage - Test 30V
Current Rating 10μA
Current - Test 1.95A
Power - Output 220W
Voltage Rating 65V
Case / Package H-37260-2
Win Source Part Number 131828-PTFA082201F V1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTFA082201F V1 CAD Model

Description

The Infineon Technologies PTFA082201F V1 is a transistor with a voltage rating of 65V and a current rating of 10μA.

  • Voltage Rating: 65V
  • Current Rating: 10μA
  • Frequency: 894MHz
  • Current-Test: 1.95A
  • Gain: 18dB
  • Polarity: LDMOS
  • Voltage-Test: 30V
  • Noise Figure: No noise figure
  • Power-Output: 220W
  • Supply and Demand Status: Limited
