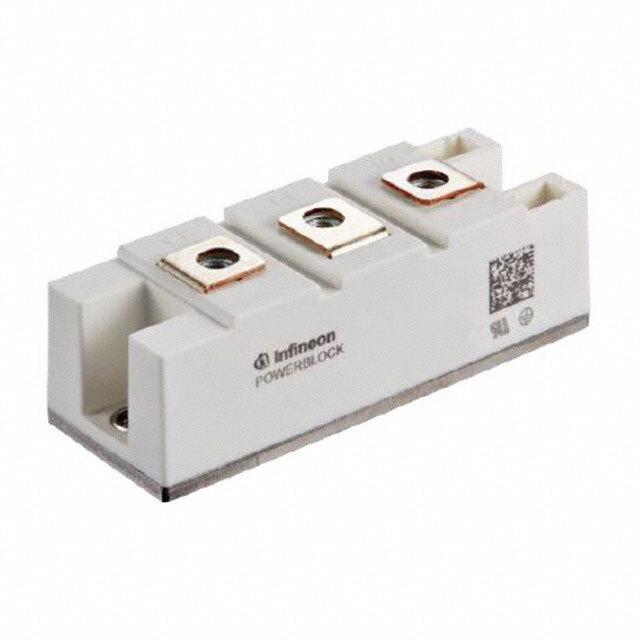

TD175N16SOFHPSA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

TD175N16SOFHPSA1

Part No TD175N16SOFHPSA1
Manufacturer Infineon Technologies
Catalog SCRs - Single - Modules
Description SCR MODULE 1600V 275A MODULE  /  SCR Module 1.6 kV 275 A Series Connection - SCR/Diode Chassis Mount Module
Datasheet
TD175N16SOFHPSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - SCRs - Modules
Mfr Infineon Technologies
Package Tray
Structure Series Connection - SCR/Diode
Number of SCRs, Diodes 1 SCR, 1 Diode
Voltage - Off State 1.6 kV
Current - On State (It (AV)) (Max) 175 A
Current - On State (It (RMS)) (Max) 275 A
Voltage - Gate Trigger (Vgt) (Max) 2 V
Current - Gate Trigger (Igt) (Max) 150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 5400A @ 50Hz
Current - Hold (Ih) (Max) 400 mA
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Chassis Mount
Package / Case Module
Base Product Number TD175N16
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
Other Names TD175N16SOF,SP001206236
Standard Package 10
Win Source Part Number 1229446-TD175N16SOFHPSA1
Ultra Librarian 3D Model Ultra Librarian TD175N16SOFHPSA1 CAD Model

Description

The Infineon Technologies TD175N16SOFHPSA1 is a thyristor module that has a voltage-off state of 1.6 kV and a voltage-gate trigger of 2 V.

  • Voltage-Off State: 1.6 kV
  • Voltage-Gate Trigger: 2 V
  • Maximum On-State Current: 175 A
  • Non-Repetitive Surge: 5400A @ 50Hz
  • Package: tray
  • Standard Package: 10
