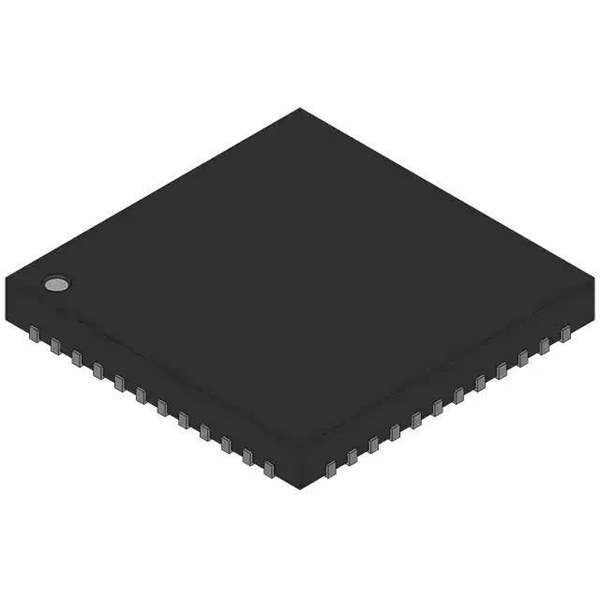

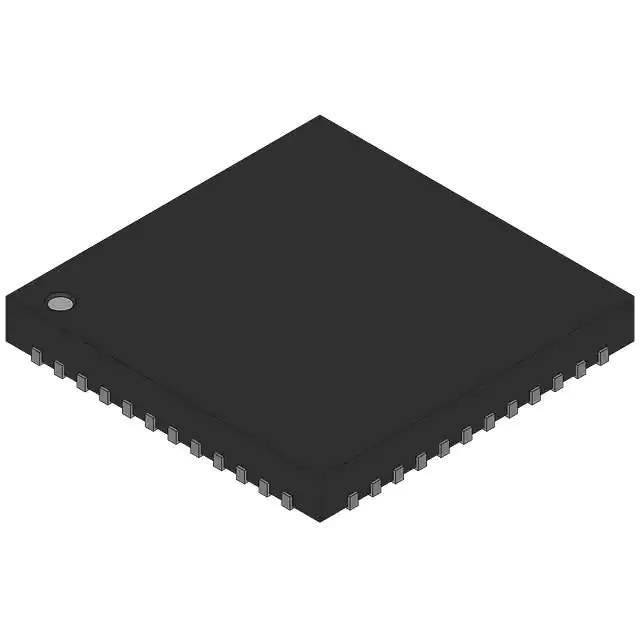

The TLE9833QX is an embedded power IC from Infineon Technologies, specifically designed for automotive applications. It integrates a microcontroller core, power drivers, and communication interfaces into a single package. This system-on-chip (SoC) is commonly used for controlling small DC motors in automotive systems.

Applications:

• Automotive window lifts
• Sunroof control
• Electric mirror adjustment
• Pump control
• Fan control

Features:

• 8-bit microcontroller core
• Integrated power drivers (e.g., MOSFETs)
• LIN (Local Interconnect Network) interface
• PWM (Pulse Width Modulation) outputs
• Over-voltage protection
• Over-current protection
• Overtemperature protection
• Small QFN package

Benefits:

• Simplified system design due to the integration of multiple functions into a single chip.
• Reduced component count, leading to lower system cost and smaller PCB size.
• Improved system reliability due to the integrated protection features.
• Efficient motor control using PWM outputs.
• Easy communication with the vehicle's electronic control unit (ECU) via the LIN interface.

Additional Details:

The TLE9833QX operates from a 7V to 18V supply voltage. The integrated power drivers can typically handle currents up to several amperes. The LIN interface supports various baud rates. The device includes multiple PWM outputs with adjustable frequency and duty cycle. The operating temperature range typically spans from -40°C to +150°C. The package is a QFN (Quad Flat No-leads) package.
