Same model may have multiple batches, images only for reference.

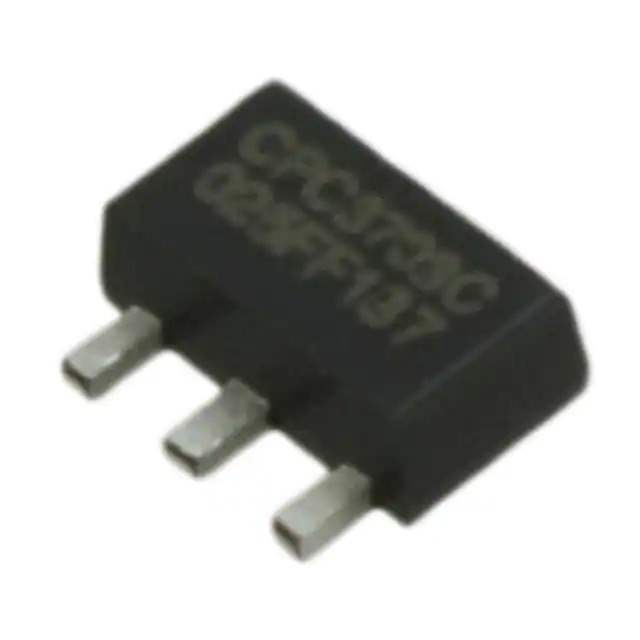

CPC3703CTR Real Image
Same model may have multiple batches, images only for reference.

CPC3703CTR

Part No CPC3703CTR
Manufacturer IXYS
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 250V 360MA SOT89-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr IXYS
Package Tape & Reel
Product Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 250 V
Current - Continuous Drain (Id) @ 25°C 360mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) 0V
Rds On (Max) @ Id, Vgs 4Ohm @ 200mA, 0V
Vgs (Max) ±15V
Input Capacitance (Ciss) (Max) @ Vds 350 pF @ 25 V
FET Feature Depletion Mode
Power Dissipation (Max) 1.1W (Ta)
Temperature Range - Operating -55°C ~ 125°C (TA)
Mounting Type Surface Mount
Supplier Device Package SOT-89-3
Package / Case TO-243AA
Base Product Number CPC3703
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
California Prop 65 Warning Information
Win Source Part Number 580162-CPC3703CTR
Ultra Librarian 3D Model Ultra Librarian CPC3703CTR CAD Model

Description

The 580162-CPC3703CTR is a depletion mode N-channel MOSFET transistor from IXYS.

  • Drain-to-Source Voltage: 250V
  • Continuous Drain Current: 360mA
  • On-Resistance: 4Ohm @ 200mA and 0V Gate Voltage
  • Input Capacitance: 350pF @ 25V
  • Operating Temperature: -55°C to 125°C
  • Mounting Type: Surface Mount
  • Package: TO-243AA
