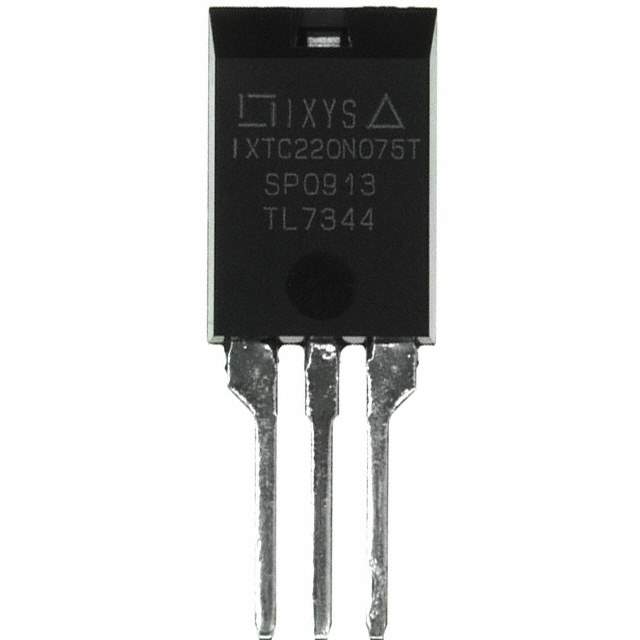

IXTC220N075T Real Image
Same model may have multiple batches, images only for reference.

IXTC220N075T

Part No IXTC220N075T
Manufacturer IXYS
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 75V 115A ISOPLUS220 / N-Channel 75 V 115A (Tc) 150W (Tc) Through Hole ISOPLUS220™
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr IXYS
Series TrenchMV™
Package Tube
Product Status Obsolete
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 75 V
Current - Continuous Drain (Id) @ 25°C 115A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 5mOhm @ 25A, 10V
Vgs(th) (Max) @ Id 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 165 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 7700 pF @ 25 V
Power Dissipation (Max) 150W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Supplier Device Package ISOPLUS220™
Package / Case ISOPLUS220™
Base Product Number IXTC220
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1346667-IXTC220N075T
Ultra Librarian 3D Model Ultra Librarian IXTC220N075T CAD Model

Description

The IXTC220N075T is a N-channel MOSFET transistor designed for use in Discrete Semiconductor Products.

  • Drain to Source Voltage (Vdss): 75 V
  • Power Dissipation (Max): 150W (Tc)
  • Mounting Type: Through Hole
  • Package: ISOPLUS220™
  • Series: TrenchMV™
  • Gate to Source Voltage (Vgs): ±20V
  • Temperature Range: -55°C to 175°C (TJ)
  • Current - Continuous Drain (Id): 115A (Tc)
  • Rds On (Max): 5mOhm @ 25A, 10V
