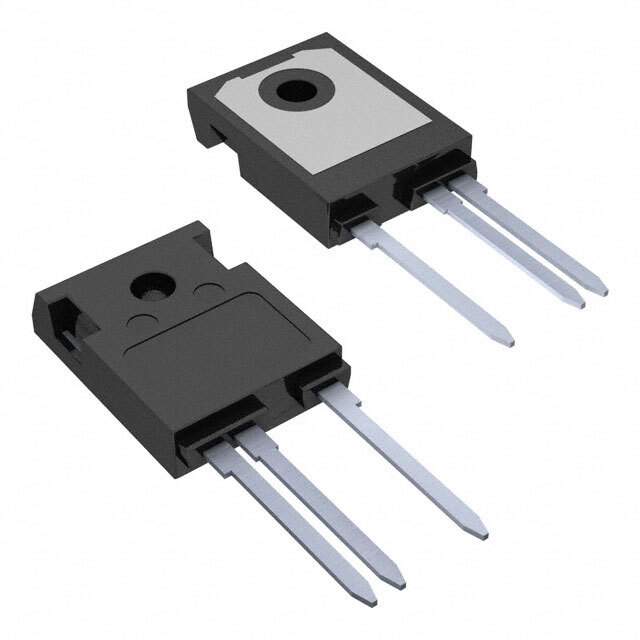

Same model may have multiple batches, images only for reference.

IXTH06N220P3HV

Name: IXTH06N220P3HV
Brand: IXYS
SKU: 1346849
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	IXTH06N220P3HV
Manufacturer	IXYS
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 2200V 600MA TO247HV / N-Channel 2200 V 600mA (Tc) 104W (Tc) Through Hole TO-247HV
Datasheet	IXTH06N220P3HV Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	IXYS
Series	Polar P3™
Package	Tube
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	2200 V
Current - Continuous Drain (Id) @ 25°C	600mA (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	80Ohm @ 300mA, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	10.4 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	290 pF @ 25 V
Power Dissipation (Max)	104W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247HV
Package / Case	TO-247-3 Variant
Base Product Number	IXTH06
Standard Package	30
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
California Prop 65	Warning Information
Win Source Part Number	1346849-IXTH06N220P3HV
Ultra Librarian 3D Model	Ultra Librarian IXTH06N220P3HV CAD Model

Alternative Products

Description

The IXTH06N220P3HV is an N-channel MOSFET transistor that belongs to the Polar P3™ series.

Drain to Source Voltage (Vdss): 2200 V
Power Dissipation: 104W (Tc)
Mounting: Through a hole
Package: TO-247-3 Variant
Vgs (Max): ±20V
Temperature Range: -55°C ~ 150°C (TJ)
Current continuous drain (Id): 600mA (Tc)
Rds On (Max): 80Ohm @ 300mA, 10V
Input Capacitance (Ciss) (Max): 290 pF @ 25 V
Gate Charge (Qg) (Max): 10.4 nC @ 10 V
