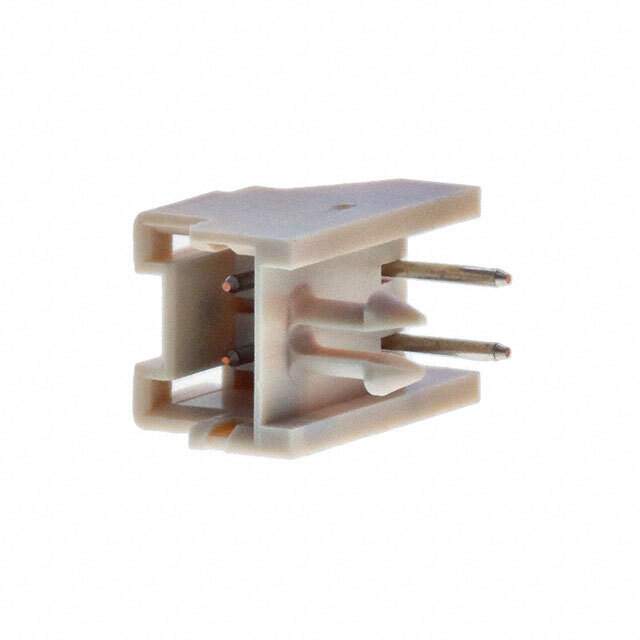

S02B-XASS-1(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S02B-XASS-1(LF)(SN)

Part No S02B-XASS-1(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 2POS 2.5MM / Connector Header Through Hole, Right Angle 2 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series XA
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.299" (7.60mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features Board Lock
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Base Product Number S02B-XAS
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names S02BXASS1LFSN,SO2B-XASS-1(LF)(SN),455-2044
Standard Package 250
Win Source Part Number 984601-S02B-XASS-1(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian S02B-XASS-1(LF)(SN) CAD Model

Description

The S02B-XASS-1(LF)(SN) is a header connector from JST Sales America Inc.

  • Type: Rectangular connector with male pins
  • Series: XA
  • Positions: 2
  • Connection Type: Board to cable/wire
  • Features: Locking ramp
  • Material: Copper alloy
  • Voltage Rating: 250V
  • Current Rating: 3A
  • Mounting: Through hole, right angle
  • Packaging: Bulk
  • Insulation Material: Polyamide (PA66), nylon 6/6, and glass filled
  • Pitch: 0.098 inches
  • Temperature Range: -25°C to 85°C
  • ECCN: EAR99 compliant
