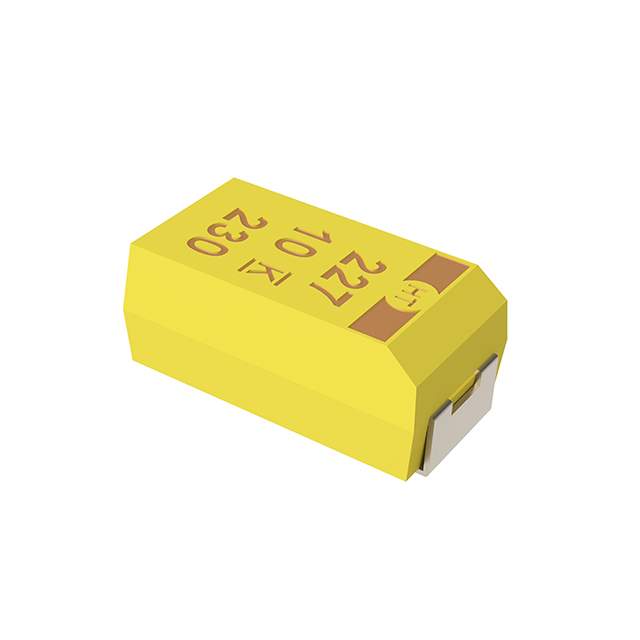

B45196P3226K309 Real Image
Same model may have multiple batches, images only for reference.

B45196P3226K309

Part No B45196P3226K309
Manufacturer Kemet
Catalog OEM Parts (A - B)
Description Tantalum Capacitor, 22UF, 16V, 6032-28 10%
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 22 µF
Mounting SMD (SMT)
Case / Package Molded
Case Code (Imperial) 2312
Case / Package 6032
Depth 3.2 mm
Dielectric Tantalum
Dissipation Factor 4.5 %
ESR (Equivalent Series Resistance) 1 Ω
Height 2.8 mm
Lead Free Yes
Leakage Current 3.6 µA
Length 6 mm
Maximum Operating Temperature 150 °C
Min Operating Temperature -55 °C
Packaging Cut Tape
Polarity Polar
REACH SVHC No SVHC
RoHS Compliant
Termination SMD/SMT
Tolerance 10 %
Voltage Rating 16 V
Voltage Rating (DC) 16 V
Weight 149.997327 mg
Width 3.2 mm
Win Source Part Number 1047758-B45196P3226K309
Categories OEM Parts(A-B)
Manufacturer Kemet
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian B45196P3226K309 CAD Model

Description

The Kemet 906350 is a high-quality SMD Tantalum Capacitor with a capacitance of 22 µF and a voltage rating of 16 V.

  • Capacitance: 22 µF
  • Voltage Rating: 16 V
  • Polarized: Yes
  • Tolerance: 10%
  • Leakage Current: 3.6 µA
  • ESR: 1 Ω
  • Length: 6 mm
  • Width: 3.2 mm
  • Height: 2.8 mm
  • Application: OEM Parts(A-B)
  • Case Package: 6032
  • RoHS: Compliant
  • Lead-Free: Yes
  • Temperature Range: -55 °C to 150 °C
