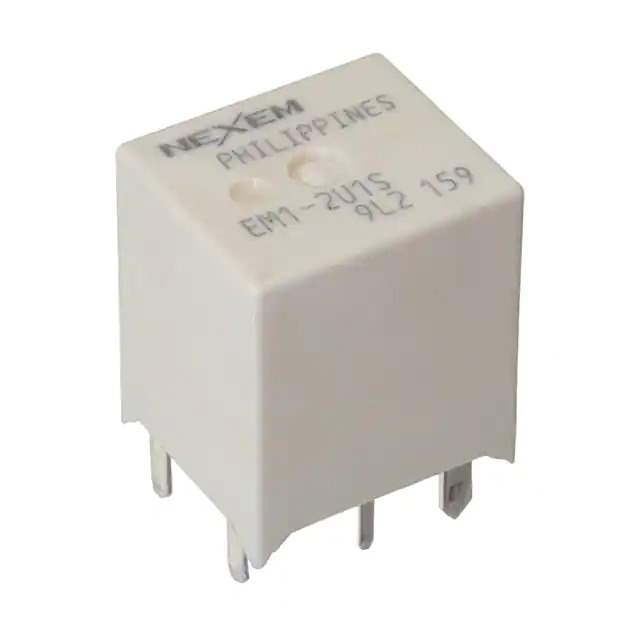

EM1-2U1S Real Image
Same model may have multiple batches, images only for reference.

EM1-2U1S

Part No EM1-2U1S
Manufacturer Kemet
Catalog Automotive Relays
Description AUTO RELAY 1 FORM U 12V 1A
Datasheet
EM1-2U1S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Automotive Relays
Mfr KEMET
Series EM1
Package Tube
Product Status Active
Coil Type Non Latching
Coil Current 53.3 mA
Coil Voltage 12VDC
Contact Form SPST-NO (DM) (1 Form U)
Contact Rating (Current) 1 A
Switching Voltage 16VDC - Max
Must Operate Voltage 6.5 VDC
Must Release Voltage 0.9 VDC
Operate Time 6 ms
Release Time 1 ms
Features Sealed - Fully
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 125°C
Contact Material Silver Tin Oxide (AgSnO)
Coil Power 640mW
Coil Resistance 225 Ohms
Standard Package 1,900 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 870386-EM1-2U1S
Ultra Librarian 3D Model Ultra Librarian EM1-2U1S CAD Model

Description

The 870386-EM1-2U1S is an automotive relay from the EM1 series by KEMET.

  • Product: 870386-EM1-2U1S
  • Series: EM1
  • Type: Automotive Relay
  • Contact Configuration: SPST-NO (Single Pole Single Throw Normally Open)
  • Contact Rating: 1A
  • Coil Voltage: 12VDC
  • Coil Resistance: 225 Ohms
  • Coil Current: 53.3mA
  • Operate Time: 6ms
  • Protection: Sealed
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Mounting Type: Through-Hole
  • Temperature Range: -40°C to 125°C
