Same model may have multiple batches, images only for reference.

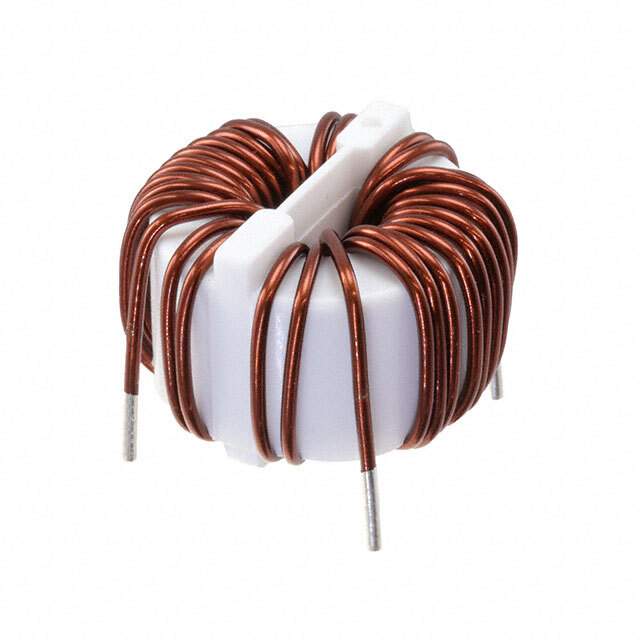

SC-08-170H Real Image
Same model may have multiple batches, images only for reference.

SC-08-170H

Part No SC-08-170H
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.7 mH @ 10 kHz
Current Rating (Max) 8A
DC Resistance (DCR) (Max) 20mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 1.339" Dia (34.00mm)
Height (Max) 0.906" (23.00mm)
Package / Case Horizontal, No Base, 4 PC Pin
Base Product Number SC-08
Other Names 399-SC-08-170H
Standard Package 150
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277081-SC-08-170H
Ultra Librarian 3D Model Ultra Librarian SC-08-170H CAD Model

Description

The KEMET SC-08-170H is a common mode choke that can be used in power line filtering applications.

  • Voltage Rating: 250V AC/DC
  • Current Rating: 8A
  • Mounting: Through-hole mounting
  • Series: SC series
  • Standard Package: 150
  • DC Resistance: 20mOhm
  • Inductance: 1.7mH @ 10kHz
  • Temperature Range: -25°C to 105°C
  • Regulations: Compliant with REACH regulations
