Same model may have multiple batches, images only for reference.

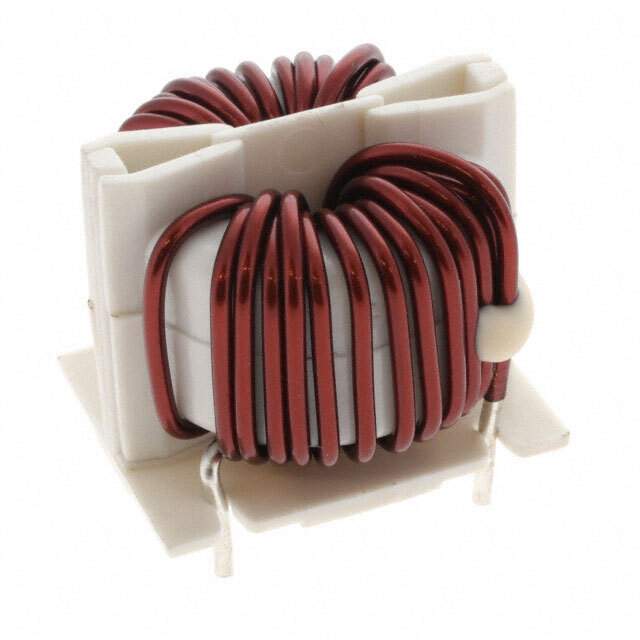

SCR-040-0R8A100JH Real Image
Same model may have multiple batches, images only for reference.

SCR-040-0R8A100JH

Part No SCR-040-0R8A100JH
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SCR
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 10 mH @ 10 kHz
Current Rating (Max) 4A
DC Resistance (DCR) (Max) 66mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.142" L x 1.063" W (29.00mm x 27.00mm)
Height (Max) 0.906" (23.00mm)
Package / Case Horizontal, 4 PC Pin
Base Product Number SCR-040
Other Names 399-20191,UAL40R8A100JH0
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1276898-SCR-040-0R8A100JH
Ultra Librarian 3D Model Ultra Librarian SCR-040-0R8A100JH CAD Model

Description

The KEMET SCR-040-0R8A100JH is a power line filter designed for common mode noise suppression in electronic circuits.

  • Manufacturer: KEMET
  • Product Name: SCR-040-0R8A100JH
  • Maximum Voltage Rating: 250V AC/DC
  • Maximum Current Rating: 4A
  • Mounting Type: Through-hole
  • Package: Horizontal, 4 PC pin
  • Inductance: 10mH @ 10kHz
  • DC Resistance (DCR): 66mOhm
  • Series: SCR
  • Height: 23.00mm
  • Dimension: 29.00mm x 27.00mm
  • Temperature Range: -25°C to 120°C
  • RoHS: Compliant
  • REACH: Unaffected
  • Packaging: Bulk
  • Approval Agency: -
