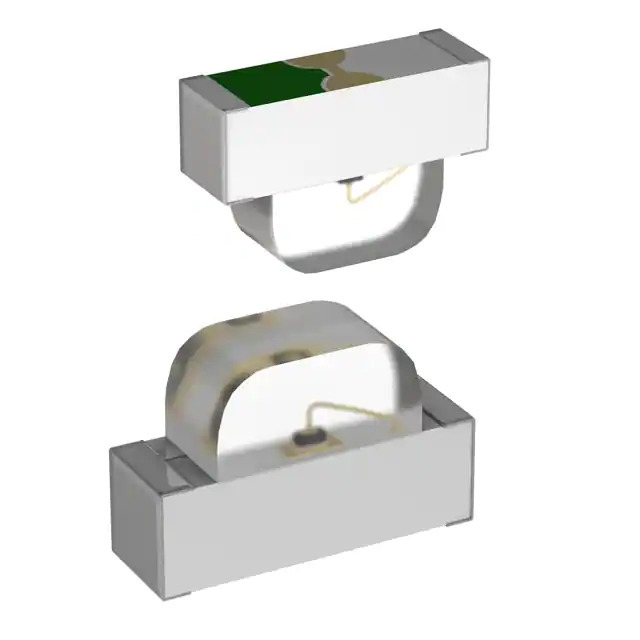

Same model may have multiple batches, images only for reference.

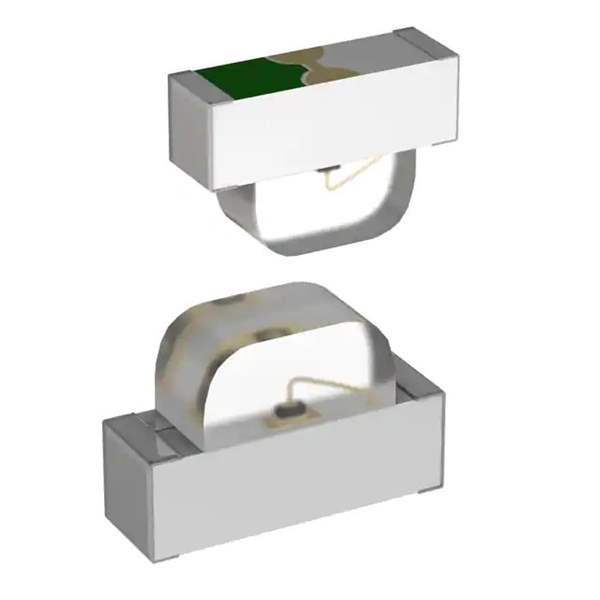

APA3010SRCPRV Kingbright Corporation
Same model may have multiple batches, images only for reference.

APA3010SRCPRV

Part No APA3010SRCPRV
Manufacturer Kingbright Corporation
Catalog LED Indication - Discrete
Description LED RED CLEAR SMD R/A
Datasheet
APA3010SRCPRV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr Kingbright
Series -
Package Tape & Reel (TR)
Product Status Obsolete
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 100mcd
Lens Style Rectangle with Domed Top
Lens Size 2.00mm x 1.00mm
Voltage - Forward (Vf) (Typ) 1.85V
Current - Test 20mA
Viewing Angle 120°
Mounting Type Surface Mount, Right Angle
Wavelength - Dominant 640nm
Wavelength - Peak 660nm
Features -
Package / Case 2-SMD, No Lead
Supplier Device Package SMD
Size / Dimension 3.00mm L x 2.00mm W
Height (Max) 1.00mm
Base Product Number APA3010
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1377847-APA3010SRCPRV
Ultra Librarian 3D Model Ultra Librarian APA3010SRCPRV CAD Model

Description

The APA3010SRCPRV is a surface mount LED manufactured by Kingbright.

  • Series: APA3010
  • Application: Optoelectronics
  • Package: Tape and Reel
  • Package/Case Size: 2-SMD, No Lead
  • Product Status: Obsolete
  • HTSUS Code: 8541.41.0000
  • Color Configuration: Red
  • Lens: Colorless
  • Size: 3.00mm L x 2.00mm W x 1.00mm H
  • Millicandela Rating: 100mcd
  • Forward Voltage: 1.85V
  • Current Rating: 20mA
  • Viewing Angle: 120°
