Same model may have multiple batches, images only for reference.

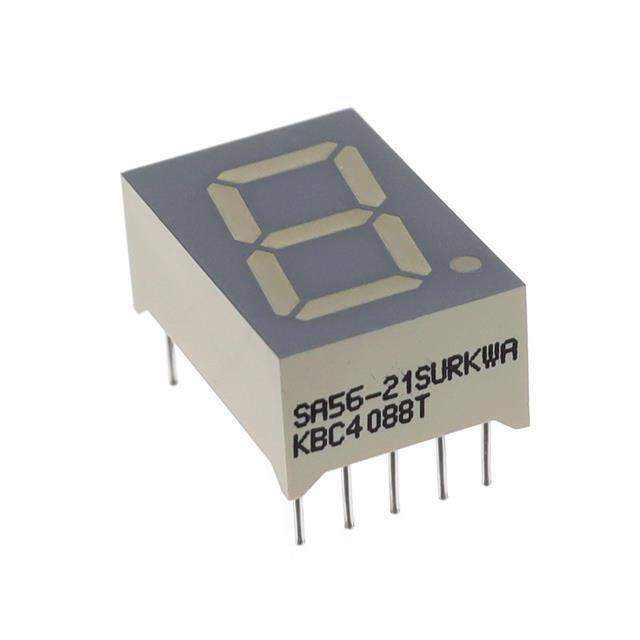

SA56-21SURKWA Real Image
Same model may have multiple batches, images only for reference.

SA56-21SURKWA

Part No SA56-21SURKWA
Manufacturer Kingbright
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7SEG 0.56" SGL RED 10DIP / Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.95V 20mA 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm) 10-DIP (0.600", 15.24mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr Kingbright
Package Tube
Number of Characters 1
Dimension 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm)
Digit/Alpha Size 0.56" (14.22mm)
Display Type 7-Segment
Common Pin Common Anode
Color Red
Voltage - Forward (Vf) (Typ) 1.95V
Current - Test 20mA
Millicandela Rating 97mcd
Wavelength - Peak 645nm
Power Dissipation (Max) 75mW
Package / Case 10-DIP (0.600", 15.24mm)
Base Product Number SA56-21
Standard Package 40
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242643-SA56-21SURKWA
Ultra Librarian 3D Model Ultra Librarian SA56-21SURKWA CAD Model

Description

The Kingbright SA56-21SURKWA is a 7-segment LED display module with a common anode.

  • Digit/Alpha Size: 0.56 inches
  • Millicandela Rating: 97mcd
  • Voltage Forward: 1.95V (typical)
  • Current Test: 20mA
  • Peak Wavelength: 645nm
  • Power Dissipation (max): 75mW
  • Package: 10-DIP
  • Dimension: 0.750 inches H x 0.500 inches W x 0.315 inches D
  • MSL Level: 1, which means it has unlimited shelf life
  • REACH: Unaffected by REACH regulations
