Same model may have multiple batches, images only for reference.

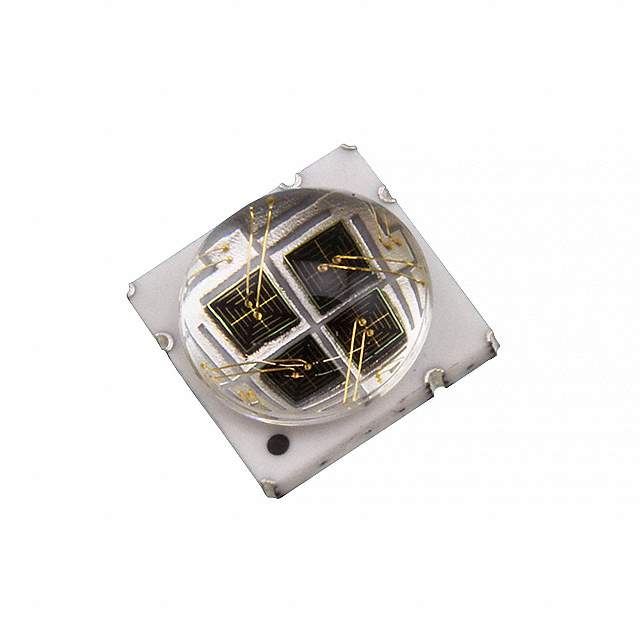

LZ4-00U600-00U0 Real Image
Same model may have multiple batches, images only for reference.

LZ4-00U600-00U0

Part No LZ4-00U600-00U0
Manufacturer LED Engin Inc.
Catalog Infrared, UV, Visible Emitters
Description EMITTER UV 365NM 700MA SMD
Datasheet
LZ4-00U600-00U0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer LED Engin Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Ultraviolet (UV)
Continuous forward current- Max 700mA
Wavelength 365nm
Forward Voltage 16.4V
Viewing Angle 115°
Orientation Top View
Temperature Range - Operating 100°C (TJ)
Mounting SMD (SMT)
Dimension 8-SMD, No Lead Exposed Pad
Win Source Part Number 143396-LZ4-00U600-00U0
Ultra Librarian 3D Model Ultra Librarian LZ4-00U600-00U0 CAD Model

Description

The LED Engin Inc. 143396-LZ4-00U600-00U0 is an ultraviolet (UV) LED component that is obsolete (EOL).

  • Packaging: Reel
  • Orientation: Top view
  • Forward Voltage: 16.4V
  • Viewing Angle: 115 degrees
  • Wavelength: 365nm
  • Radiant Intensity (Ie) min @ If: -
  • Ideal for: Use in optoelectronics devices that require UV light
