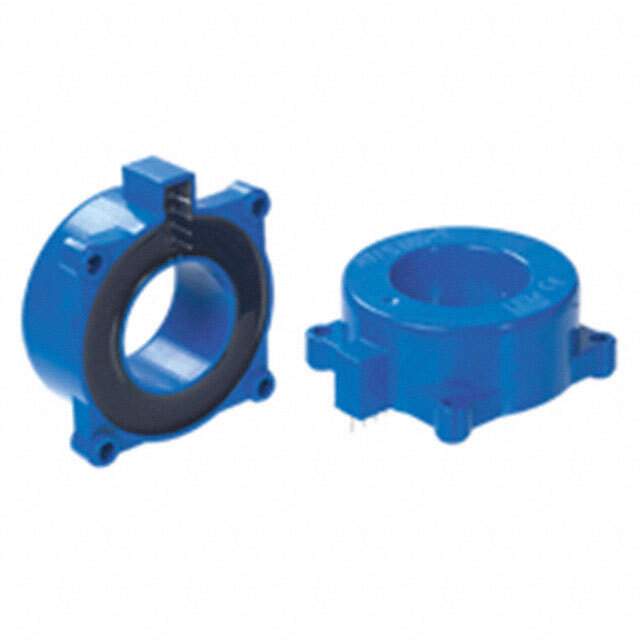

The LEM USA Inc. HTFS 400-P/SP2 is a current transducer designed for electronic measurement of DC, AC, or pulsed currents in high-power applications. It provides galvanic isolation between the primary (measured) circuit and the secondary (measurement) circuit.

Applications:

• Variable Speed Drives: Used for measuring motor currents in variable speed drive systems.
• Uninterruptible Power Supplies (UPS): Employed in UPS systems for monitoring battery charging and discharging currents.
• Welding Equipment: Used in welding machines for precise current control and monitoring.
• Power Inverters: Utilized in power inverters for measuring DC and AC currents.
• Battery Monitoring Systems: Employed in battery monitoring systems to measure charge and discharge currents.

Features:

• Galvanic Isolation: Provides electrical isolation between the primary and secondary circuits.
• High Accuracy: Offers accurate measurement of DC, AC, and pulsed currents.
• Wide Operating Temperature Range: Functions reliably in diverse environmental conditions.
• Fast Response Time: Provides a quick response to changes in current.
• Compact Design: Available in a compact package for easy integration into various applications.

Benefits:

• Safe Operation: Ensures safe operation by providing galvanic isolation.
• Precise Measurement: Delivers accurate current measurements for precise control and monitoring.
• Robust Performance: Operates reliably in harsh industrial environments.
• Simplified System Design: Facilitates easy integration into various power electronic systems.
• Reduced Energy Consumption: Enables efficient energy management through precise current monitoring.

Additional Details:

The HTFS 400-P/SP2 operates based on the Hall effect principle, where the magnetic field generated by the primary current is measured by a Hall sensor. The output is typically a current or voltage proportional to the primary current. Key specifications include the measurement range (e.g., ±400 A), accuracy, linearity, and isolation voltage. The transducer requires a DC power supply for operation. Datasheets provide detailed electrical characteristics, mechanical dimensions, and safety guidelines. The "SP2" likely designates a specific configuration or modification of the standard HTFS 400-P.
