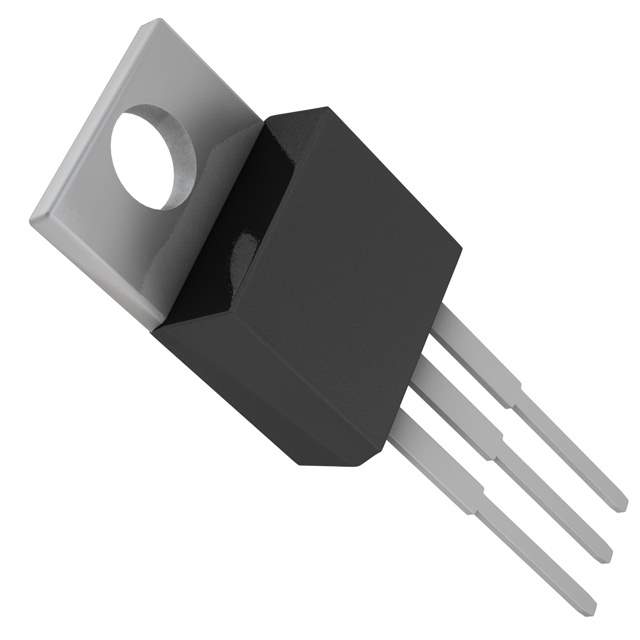

The LT1584CT-3.38 is a high-performance, low dropout (LDO) linear regulator from Linear Technology, designed to provide a fixed 3.38V output from a variable input voltage source. This regulator is capable of delivering up to 7A of continuous output current with a dropout voltage of typically 1.5V at full load, making it an excellent choice for high current applications that require a stable voltage supply.

Key Features

• High Output Current: Capable of delivering up to 7A of continuous current to meet the needs of power-hungry circuits.
• Low Dropout Voltage: With a typical dropout voltage of just 1.5V at full load, it ensures efficient operation even when the input voltage is close to the output voltage.
• Fixed Output Voltage: Provides a stable 3.38V output, ideal for consistent power supply requirements.
• Overcurrent and Overtemperature Protection: Built-in safety features protect the device and the connected components from damage due to excessive current or overheating.
• Adjustable Current Limit: Allows the user to set a current limit threshold to suit the needs of specific applications and safeguard the circuit.
• Thermal Regulation: Ensures stable operation by adjusting the output current to maintain a safe junction temperature.

Applications

The LT1584CT-3.38 is suitable for a wide range of applications, particularly where high current and a stable voltage are required. Some common applications include:

• Microprocessor and logic supply
• Post-regulation for switching supplies
• Constant voltage power supply
• Battery chargers
• Automotive electronics

Technical Specifications

For detailed technical specifications, application notes, and more, refer to the LT1584CT-3.38 datasheet provided by Linear Technology.
