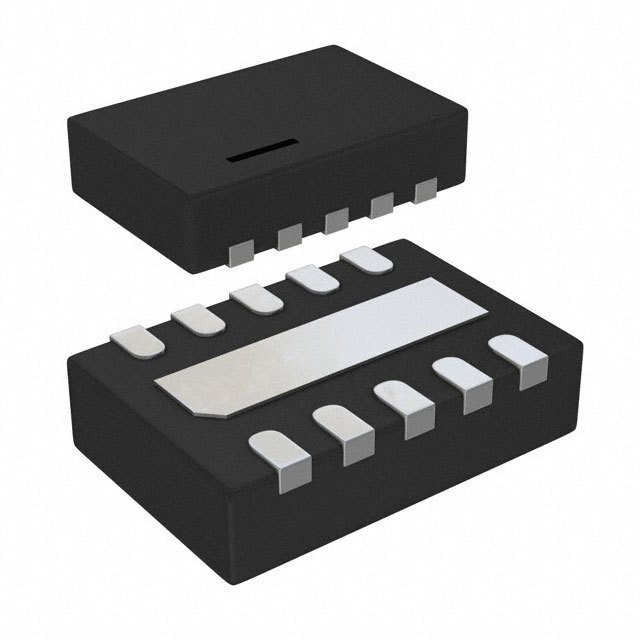

The LT3495EDDB#TRPBF is a cutting-edge, integrated circuit designed by Linear Technology, now part of Analog Devices, specifically tailored for LED driving applications. This compact, highly efficient device is housed in a small 8-lead DFN package, making it an ideal solution for space-constrained applications.

Key Features

• Integrated Boost Converter: The LT3495EDDB#TRPBF features an internal 2.3MHz fixed frequency, current mode PWM boost converter, which allows for a compact overall design.
• True Color PWM Dimming: This product offers a wide dimming range with True Color PWM, delivering constant LED color with deep dimming capability.
• High Efficiency: The device is optimized for efficiency, capable of driving up to six white LEDs from a 3.3V input, making it suitable for battery-powered applications.
• Open LED Protection: It includes open LED protection that ensures the device remains safe in the event of an open circuit condition.
• Thermal Protection: The LT3495EDDB#TRPBF is also equipped with thermal shutdown protection, safeguarding the device from overheating and potential damage.

Applications

The versatility of the LT3495EDDB#TRPBF makes it an excellent choice for a broad range of applications, including:

• Portable and handheld devices
• Small LCD displays backlighting
• GPS and other automotive lighting
• General LED lighting

Quality and Reliability

Linear Technology is renowned for its commitment to quality, and the LT3495EDDB#TRPBF is no exception. It is designed to meet the rigorous standards expected in professional electronic components, ensuring reliability and performance in demanding environments.

Environmental Compliance

This product is RoHS compliant and lead-free, reflecting Linear Technology's dedication to environmental responsibility and the health and safety of electronic consumers.
