Linear Technology's LT6700CS6-1 Low Power Comparator

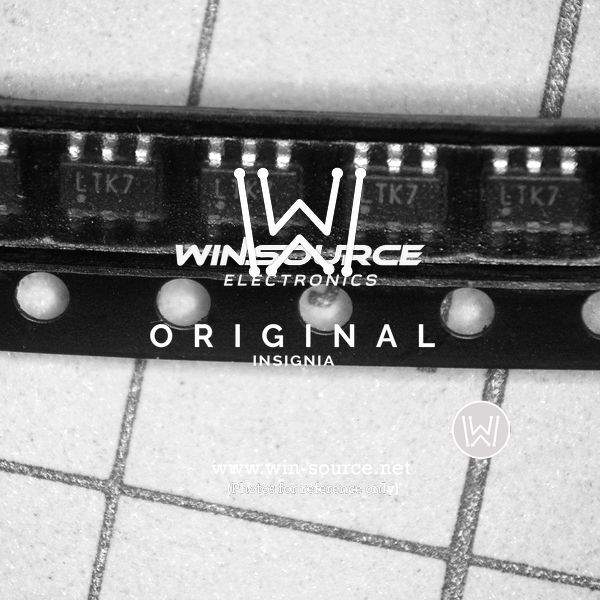

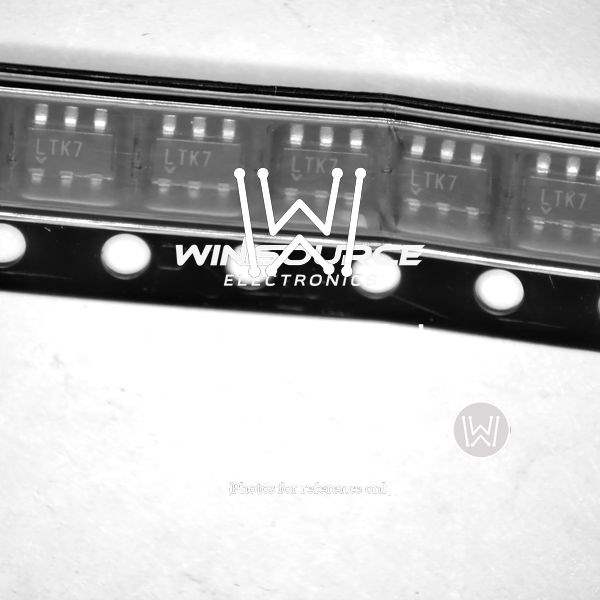

The LT6700CS6-1 is a versatile, micropower comparator from Linear Technology, designed for a wide array of applications requiring low voltage and low power operation. This compact component is housed in a tiny 6-lead SOT-23 package, making it an excellent choice for space-constrained applications.

Key Features:

• Low Operating Voltage: The LT6700CS6-1 can function at a supply voltage range of 1.4V to 18V, allowing it to be used in various systems without the need for additional power regulation.
• Low Current Consumption: With a quiescent current of just 6.5µA, this comparator is optimized for battery-powered and portable devices where power efficiency is critical.
• Dual Input Voltage Ranges: The LT6700CS6-1 features two input voltage ranges, one includes ground and the other is a separate input voltage range that can be as low as 100mV below V<sub>- or as high as 18V, offering flexibility in monitoring different signal levels.
• Internal Voltage References: It comes with internal 400mV reference voltages, eliminating the need for external components and simplifying design.
• Fast Propagation Delay: The comparator boasts a propagation delay of typically 7µs, providing quick response times for critical applications.

Applications:

The LT6700CS6-1 is ideal for various applications, including:

• Battery-powered systems
• Portable and handheld devices
• Threshold detection and level shifting
• Window comparators
• Switching power supplies
• Automotive electronics

Reliability and Performance:

Linear Technology's commitment to high-quality manufacturing ensures that the LT6700CS6-1 provides reliable performance in demanding conditions. With its robust design and low power consumption, this comparator is an ideal solution for designers looking to enhance the efficiency and longevity of their products.
