Linear Technology's LT8614IUDC#TRPBF - High-Efficiency, Silent Switcher

The LT8614IUDC#TRPBF is a cutting-edge, synchronous step-down switching regulator from Linear Technology, designed to deliver high efficiency, low EMI/EMC emissions, and ease of use in a wide range of applications. As part of Linear Technology's Silent Switcher® series, this device is optimized to reduce noise and meet stringent regulatory standards for electromagnetic compatibility.

With an input voltage range of 3.4V to 42V, the LT8614IUDC#TRPBF is capable of delivering a continuous output current of up to 4A, making it suitable for automotive, industrial, and high-density power systems that require a compact, efficient, and low-noise solution. The device operates with a switching frequency that can be programmed between 200kHz to 3MHz and can be synchronized to an external clock, allowing for flexibility in design and optimization of performance and component size.

The LT8614IUDC#TRPBF boasts an impressive efficiency of up to 96%, which minimizes heat generation and allows for operation without the need for heat sinks in most applications. Its unique design includes internal top and bottom high-efficiency power switches, which provide a low dropout voltage, further enhancing efficiency under all conditions of load and input voltage.

This regulator also features a fast minimum on-time of just 30ns, making it an excellent choice for high step-down ratio applications, such as converting from a 24V automotive input to a 3.3V or 5V rail. Additionally, the LT8614IUDC#TRPBF provides a precise 1V reference voltage with an accuracy of ±1% over a temperature range of -40°C to +125°C, ensuring reliable and consistent performance even under varying environmental conditions.

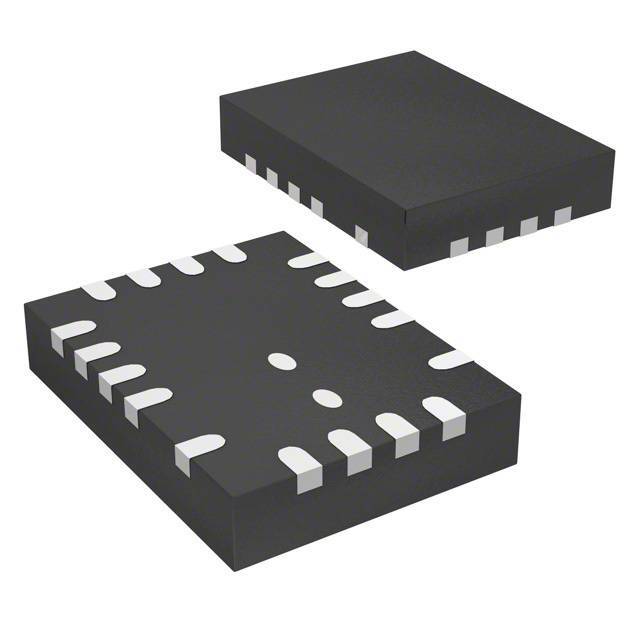

For added protection, the device includes features such as overvoltage protection, overcurrent protection, and thermal shutdown, safeguarding your system from potential damage. The LT8614IUDC#TRPBF is available in a compact 3mm x 5mm QFN-20 package, perfect for space-constrained applications.

Overall, Linear Technology's LT8614IUDC#TRPBF is an excellent choice for designers looking for a high-performance, low-noise, and highly efficient voltage regulator that can withstand the rigors of demanding applications.
