LTC1844ES5-SD#TRPBF: Ultra-Low Power, Low Dropout Voltage Linear Regulator

The LTC1844ES5-SD#TRPBF is a high-performance, low dropout voltage (LDO) linear regulator designed and manufactured by Linear Technology, now part of Analog Devices. This compact and efficient regulator is specifically engineered to meet the needs of battery-powered systems where extended battery life is crucial. The LTC1844ES5-SD#TRPBF is an ideal choice for portable and space-constrained applications due to its small footprint and excellent power management capabilities.

Key Features:

• Low Dropout Voltage: The device offers a very low dropout voltage, which enhances efficiency by allowing the regulator to operate closer to the battery voltage. This feature is particularly beneficial for single-cell, battery-operated electronics, where maximizing the usable battery voltage range is essential.
• Ultra-Low Quiescent Current: With an ultra-low quiescent current of just 30µA (typical), the LTC1844ES5-SD#TRPBF significantly reduces power consumption in standby and light load conditions, thus prolonging battery life.
• High Output Accuracy: It provides high output voltage accuracy, which is critical for powering sensitive electronic components that require precise voltage levels for optimal performance.
• Thermal Protection: The device includes an internal thermal shutdown mechanism that protects the regulator and the overall system from damage due to excessive heat and power dissipation.

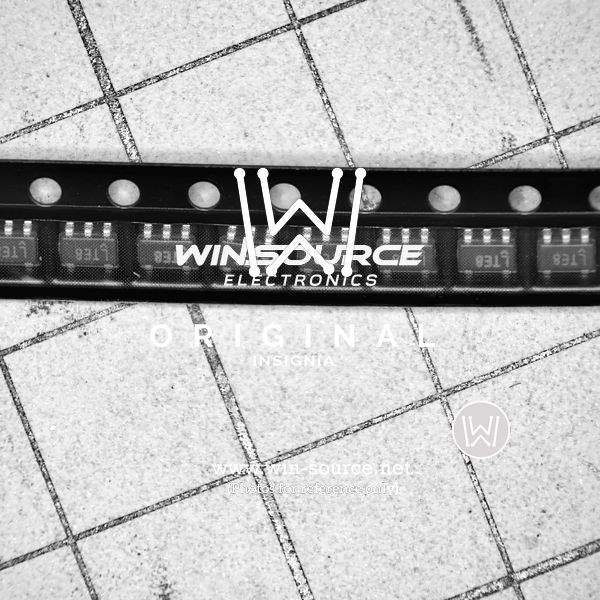

• Low Profile SOT-23 Package: Housed in a tiny SOT-23 package, the LTC1844ES5-SD#TRPBF is suitable for applications where board space is at a premium.

Applications:

The LTC1844ES5-SD#TRPBF is versatile and can be used in a variety of applications, including:

• Portable and wearable devices
• Wireless communication systems
• Medical devices
• Personal digital assistants (PDAs) and smartphones
• GPS receivers
• Portable instrumentation

In summary, the LTC1844ES5-SD#TRPBF from Linear Technology is a reliable and efficient solution for designers seeking to optimize power consumption and extend battery life in their portable and space-sensitive products. Its low dropout voltage, ultra-low quiescent current, and compact form factor make it an excellent choice for modern electronic devices.
