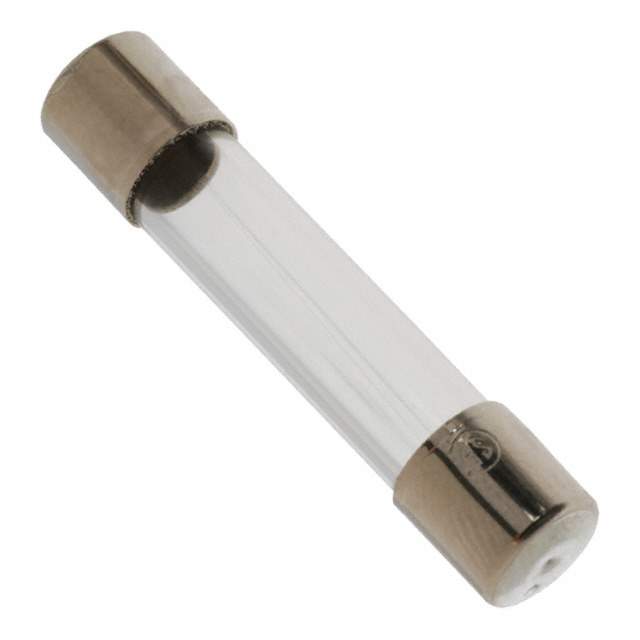

0312005.MXP Real Image
Same model may have multiple batches, images only for reference.

0312005.MXP

Part No 0312005.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 5A 250VAC 3AB 3AG / 312/318 Series Lead-Free 3AG, Fast-Acting Fuse
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge, Glass
Current Rating (Amps) 5A
Voltage Rating - AC 250V
Response Time Fast Blow
Manufacturer Package 3AB, 3AG, 1/4" x 1-1/4"
Mounting Style Holder
Breaking Capacity at Rated Voltage 200A
Melting I2t 50
Approvals CE, CSA, KC, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.250" Dia x 1.250" L (6.35mm x 31.75mm)
DC Cold Resistance 0.0224 Ohms
Manufacturer Pack Quantity 1,000
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808577-0312005.MXP
Ultra Librarian 3D Model Ultra Librarian 0312005.MXP CAD Model

Description

The Littelfuse Inc. 808577-0312005.MXP is a Cartridge, Glass type fuse from Littelfuse Inc.

  • Voltage Rating: 250V AC
  • Current Rating: 5A
  • Response Time: fast-blow
  • Melting I2t: 50
  • Approvals: CE, CSA, KC, PSE, UL
  • DC Cold Resistance: 0.0224 Ohms
  • Manufacturer Package: 3AB, 3AG, 1/4" x 1-1/4"
  • Manufacturer Pack Quantity: 1,000
  • Supply and Demand Status: balanced
  • MSL Level: not applicable
