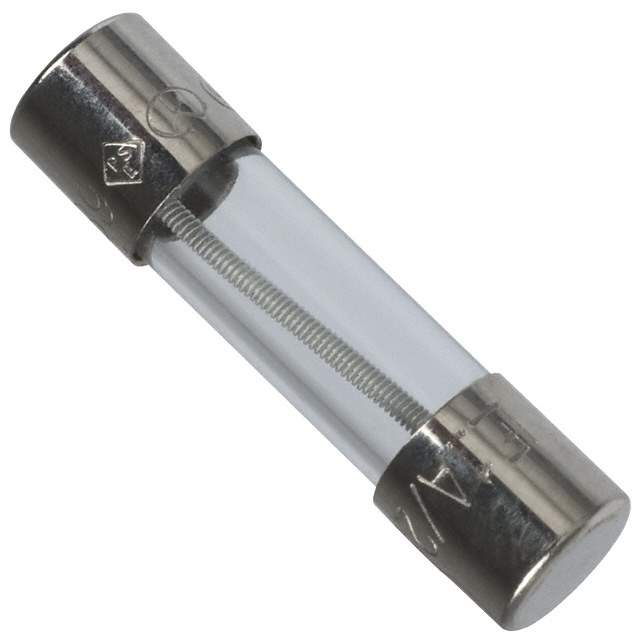

Same model may have multiple batches, images only for reference.

0239001.HXP

Name: 0239001.HXP
Brand: Littelfuse Inc.
SKU: 1334674
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	0239001.HXP
Manufacturer	Littelfuse Inc.
Catalog	Fuses
Description	FUSE GLASS 1A 250VAC 5X20MM / 1 A 250 V AC DC Fuse Cartridge, Glass Holder 5mm x 20mm
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>Fuses
Manufacturer	Littelfuse Inc.
Packaging	Bulk
Mounting	Holder
Fuse Type	Cartridge, Glass
Current Rating (Amps)	1 A
Voltage Rating - AC	250 V
Response Time	Slow Blow
Case / Package	5mm x 20mm
Breaking Capacity @ Rated Voltage	35A
Melting I2t	11.295
Approval Agency	CE, CSA, KC, PSE, UL
Temperature Range - Operating	-55°C ~ 125°C
Size / Dimension	0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance	0.2965 Ohms
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.10.0020
Other Part Number	0239001.HXP-ND,0239001HXP,239001,-1024-0239001.HXP,239001XP,239001.P,F2702,239001.XP
Standard Package	100
Win Source Part Number	1334674-0239001.HXP
Ultra Librarian 3D Model	Ultra Librarian 0239001.HXP CAD Model

Alternative Products

Description

This electronic component is a glass cartridge fuse manufactured by Littelfuse Inc.

Voltage Rating: 250V AC
Response Time: slow blow
Breaking Capacity: 35A @ rated voltage
Melting I2t: 11.295
DC Cold Resistance: 0.2965 Ohms
Standard Package: 100
Mounting Type: Holder
Temperature Range: -55°C to 125°C
Approvals: CE, CSA, KC, PSE, and UL
ROHS3 Compliant: Yes
Win Source Part Number: 1334674-0239001
MSL Level: 1 (Unlimited)
Current Rating: 1A
ECCN: EAR99
HTSUS: 8536.10.0020
Other Part Numbers: 0239001.HXP-ND, 0239001HXP, 239001, -1024-0239001.HXP, 239001XP, 239001.P, F2702, and 239001.XP
