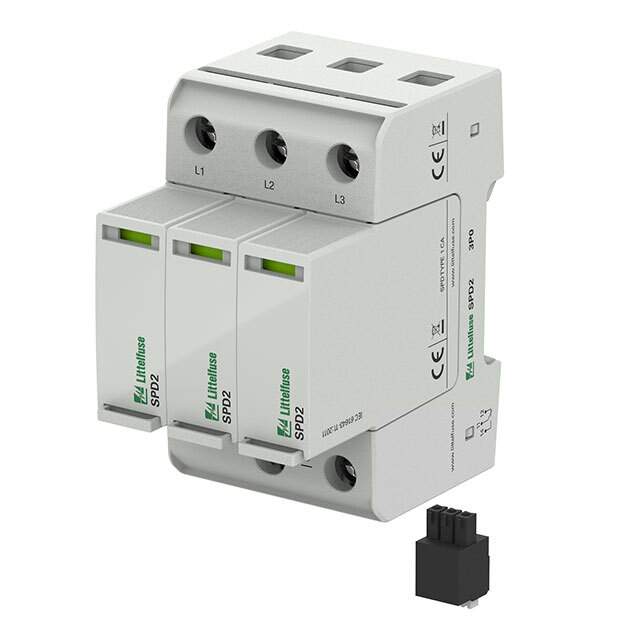

SPD2-300-3P0-R Real Image
Same model may have multiple batches, images only for reference.

SPD2-300-3P0-R

Part No SPD2-300-3P0-R
Manufacturer Littelfuse Inc.
Catalog TVS - Mixed Technology
Description SPD MOD 3P+0 300VAC TYPE 1+2
Datasheet
SPD2-300-3P0-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Surge Protection Devices (SPDs)
Mfr Littelfuse Inc.
Series SPD2 3P+0
Package Bulk
Type Type 1, Type 2
Form Base + Module
Number of Poles 3
Voltage - Continuous Operating (Max) (MCOV) 300VAC
Current - Discharge (Nom) (8/20µS) 20 kA
Current - Discharge (Max) (8/20µS) 50 kA
Current - Short Circuit Rating (SCRR) 150 kA
Voltage - Protection Rating (VPR) 900 V
Voltage - Protection Level (VP) (2416) 1.5 kV
Temperature Range - Operating -40°C ~ 80°C
Features Remote Signaling Contacts, Thermally Protected
Mounting Type DIN Rail
Approval Agency CE, cURus, UL, VDE
Other Names -1024-SPD2-300-3P0-R,F12054
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.30.8000
Win Source Part Number 1294357-SPD2-300-3P0-R
Ultra Librarian 3D Model Ultra Librarian SPD2-300-3P0-R CAD Model

Description

The SPD2 3P+0 series surge protection device (SPD) is a type 1 and type 2 device that features remote signaling contacts and is thermally protected.

  • Voltage: 300VAC
  • Current Discharge (Nom): 20kA (8/20µs)
  • Current Discharge (Max): 50kA (8/20µs)
  • Current Short Circuit Rating: 150kA
  • Voltage Protection Rating: 900V
  • Voltage Protection Level: 1.5kV
  • Voltage Breakdown: 300VAC
  • Temperature Range: -40°C to 80°C
  • Standard Package: 1
  • Mounting: DIN rail
  • ECCN: EAR99
  • Approvals: CE, cURus, UL, and VDE
