Same model may have multiple batches, images only for reference.

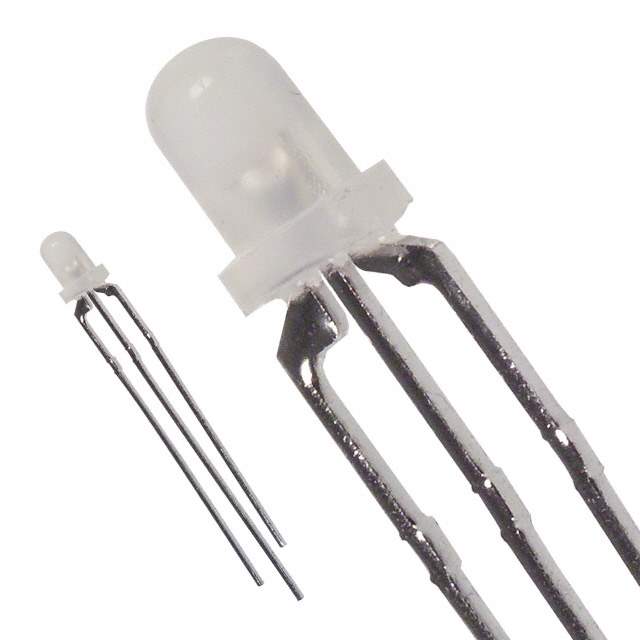

SSL-LX3059GYW Real Image
Same model may have multiple batches, images only for reference.

SSL-LX3059GYW

Part No SSL-LX3059GYW
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED GREEN/YLW DIFF T-3MM TRI T/H / Green, Yellow LED Indication - Discrete 2.2V Green, 2V Yellow Radial - 3 Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Green, Yellow
Configuration Common Cathode
Lens Color White
Lens Transparency Diffused
Millicandela Rating 6mcd Green, 6mcd Yellow
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage - Forward (Vf) (Typ) 2.2V Green, 2V Yellow
Current - Test 20mA Green, 20mA Yellow
Viewing Angle 60°
Mounting Type Through Hole
Wavelength - Peak 565nm Green, 585nm Yellow
Package / Case Radial - 3 Leads
Supplier Device Package T-3mm TRI-LEADED
Height (Max) 7.03mm
Base Product Number SSL-LX3059
Other Names LU204657,Q3963042,67-1329,67-1329R,SSLLX3059GYW
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242157-SSL-LX3059GYW
Ultra Librarian 3D Model Ultra Librarian SSL-LX3059GYW CAD Model

Description

The SSL-LX3059GYW is a through-hole LED indication discrete component from Lumex Opto/Components Inc.

  • Configuration: Common cathode
  • Colors: Green and Yellow
  • Green LED Dominant Wavelength: 565nm
  • Yellow LED Dominant Wavelength: 585nm
  • Lens Style: Round with a domed top
  • Lens Size: 3mm
  • Millicandela Rating (Green/Yellow): 6mcd
  • Forward Voltage (Green/Yellow): 2.2V / 2V
  • Current Test (Green/Yellow): 20mA
  • Standard Package: 500
  • Viewing Angle: 60 degrees
  • Height: 7.03mm
  • Mounting: Through a radial package with 3 leads
  • Supplier Device Package: T-3mm TRI-LEADED
