MASW-007921-TR3000

Part No MASW-007921-TR3000
Manufacturer M/A-Com Technology Solutions
Catalog RF Switches
Description High Power GaAs SPDT Switch DC - 7.0 GHz
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer M/A-Com Technology Solutions
Packaging Reel - TR
Frequency - Lower DC
Frequency - Upper 7GHz
Isolation @ Frequency 30dB @ 5.8GHz (typ)
Insertion Loss @ Frequency 1.2dB @ 5.8GHz
Topology Reflective
Circuit SPDT
Impedance 50 Ohm
Operating Temperature Range -40°C ~ 85°C
RF Type WiMax, WLAN

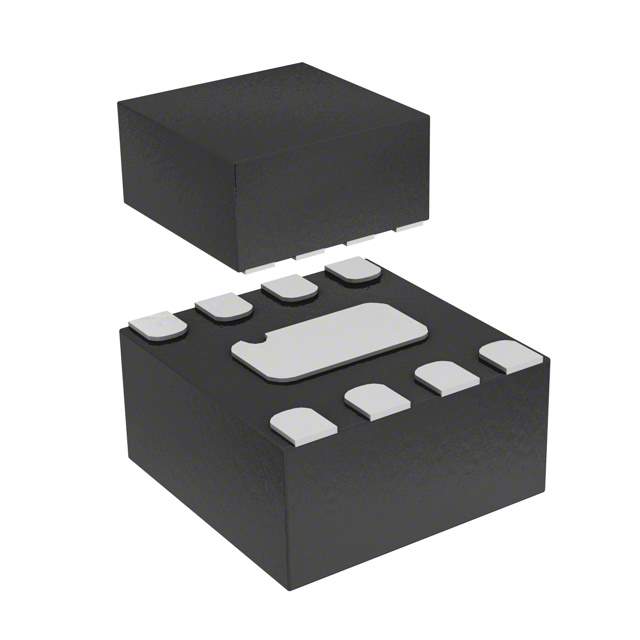

Package 8-VFDFN Exposed Pad
Manufacturer Package 8-PDFN (2x2)
Win Source Part Number 1211822-MASW-007921-TR3000
Manufacturer Homepage www.macomtech.com
Popularity Medium
Supply and Demand Status Limited
Family Name MASW-007921-TR3000
Introduction Date May 19, 2009
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian MASW-007921-TR3000 CAD Model

Description

MASW-007921-TR3000 from M/A-Com Technology Solutions is an RF switch component used in signal routing paths where designers need controlled switching in wireless, test, instrumentation, and communications hardware. Parts in this category are commonly selected for RF front ends, transmit/receive paths, antenna switching, and general signal-chain management in compact electronic systems. For engineering teams, the value of this device lies in its positioning within a well-known RF product family from an established manufacturer, making it relevant for prototype evaluation, maintenance sourcing, and ongoing production support. The current lifecycle status for MASW-007921-TR3000 is information not available, so buyers should treat schedule and continuity planning with caution and confirm the latest manufacturer guidance before locking it into new designs. RoHS compliance information is also not available in the provided data. Engineers and procurement teams should verify environmental compliance, material declarations, and any applicable exemptions directly from official datasheets, manufacturer statements, or authorized channel documentation.
