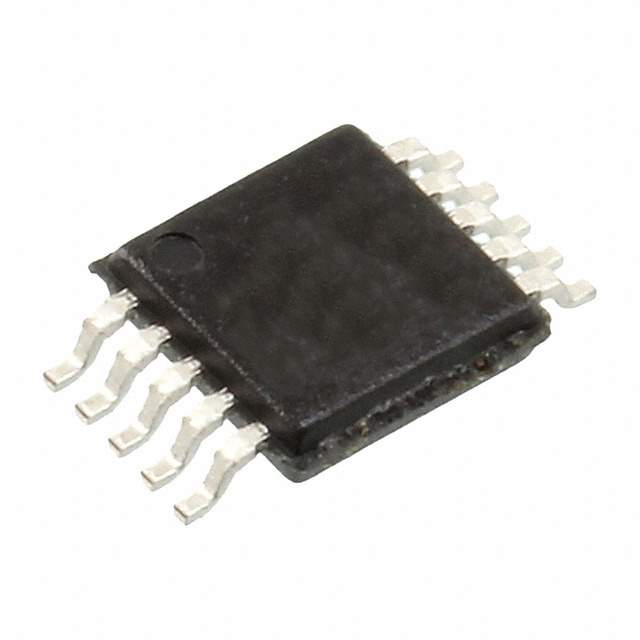

MASWSS0169TR-3000 Real Image
Same model may have multiple batches, images only for reference.

MASWSS0169TR-3000

Part No MASWSS0169TR-3000
Manufacturer M/A-Com Technology Solutions
Catalog RF Switches
Description SWITCH GAAS 3GHZ SW-439LF
Datasheet
MASWSS0169TR-3000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer M/A-Com Technology Solutions
Packaging Reel
Part Status Active
Frequency - Lower DC
Frequency - Upper 3GHz
Isolation @ Frequency 33dB @ 3GHz (typ)
Insertion Loss @ Frequency 0.8dB @ 3GHz
Topology Reflective
Circuit SPDT
P1dB 28dBm
Impedance 50 Ohm
Temperature Range - Operating -40°C ~ 85°C
RF Type Cellular
Case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package 10-MSOP
Win Source Part Number MASWSS0169TR-3000-207811
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MASWSS0169TR-3000 CAD Model

Description

The M/A-Com Technology Solutions MASWSS0169TR-3000-207811 is a medium popularity electronic component that has limited supply and demand.

  • Manufacturer: M/A-Com Technology Solutions
  • Impedance: 50 Ohm
  • Circuit: SPDT
  • Topology: reflective
  • Frequency Range: from DC to 3GHz
  • Isolation at Frequency: 33dB @ 3GHz (typ)
  • Insertion Loss at Frequency: 0.8dB @ 3GHz
  • P1dB: 28dBm
  • RF Type: cellular
  • Supplier Device Package: 10-MSOP
  • Temperature Range for Operating: -40°C ~ 85°C
  • Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
