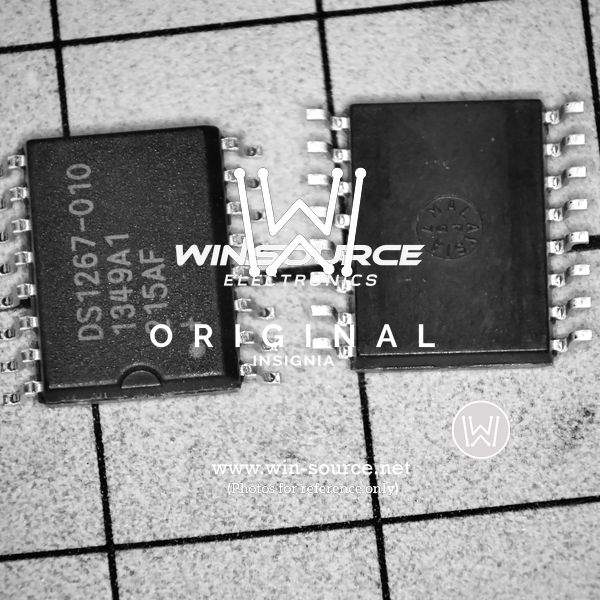

Maxim Integrated DS1267S-010+ Digital Potentiometer

The Maxim Integrated DS1267S-010+ is a versatile, digitally-controlled potentiometer designed for modern electronic systems requiring variable resistance settings. This integrated circuit (IC) simulates the analog functionality of a mechanical potentiometer with the reliability and precision of digital control. It is an ideal solution for applications that demand adjustments to calibration settings, such as volume control, filter adjustments, and feedback system tuning.

Key Features

• Dual Digital Potentiometer: The DS1267S-010+ features two independent potentiometers in one package, providing a compact solution for designs requiring multiple variable resistors.
• Wide Resistance Range: Each potentiometer offers a resistance range of 10kΩ, allowing for a broad spectrum of applications and fine-tuning capabilities.
• 256 Position: With 256 wiper positions, users can achieve precise resistance adjustments, ensuring the utmost accuracy in their system's performance.
• Nonvolatile Memory: The wiper position of each potentiometer is stored in onboard nonvolatile memory (EEPROM), which means the last used settings are recalled upon power-up, eliminating the need for manual readjustment.
• Serial Interface: The device operates with a 3-wire serial interface, making it simple to integrate into a variety of microcontroller-based systems.
• Wide Operating Voltage: The DS1267S-010+ operates over a wide voltage range of 4.5V to 5.5V, providing flexibility in different power environments.
• Extended Temperature Range: It is designed to work in extreme conditions, with an operating temperature range of -40°C to +85°C, suitable for industrial applications.
• Surface-Mount Package: The device comes in a surface-mount SO package, making it easy to incorporate into PCB designs and ideal for space-constrained applications.

Applications

The DS1267S-010+ is used in a variety of applications where digital control of resistance is required. Common uses include adjusting the volume in audio systems, setting the brightness in lighting systems, and controlling the sensitivity in sensors. Its robust design and digital interface make it a reliable choice for automotive systems, industrial equipment, and consumer electronics where precision and durability are paramount.

With its combination of dual-channel operation, nonvolatile memory, and precise control, the Maxim Integrated DS1267S-010+ digital potentiometer is a highly functional component for modern electronic designs that require the utmost in performance and reliability.
