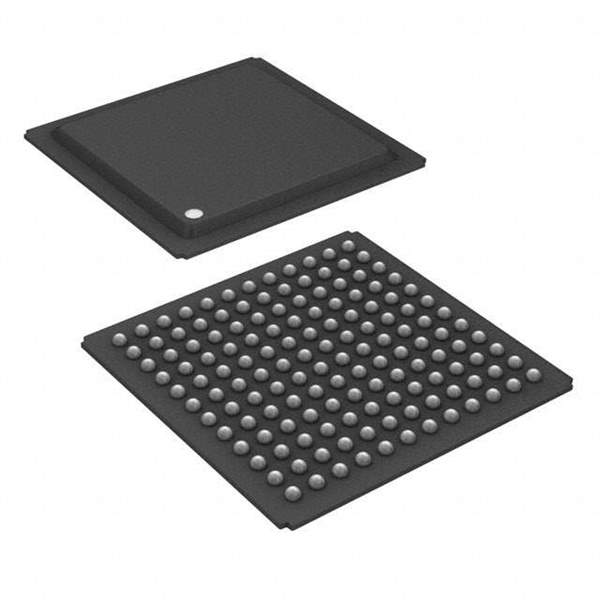

The Maxim Integrated DS21448A1 is a versatile and high-performance single-chip transceiver designed for T1/E1/J1 applications. This integrated circuit is engineered to provide a comprehensive solution for communication systems requiring robust and reliable data transmission over T1 (1.544Mbps), E1 (2.048Mbps), or J1 lines.

The DS21448A1 integrates line interface, framer, and LIU (Line Interface Unit) functions into a single compact package. This integration significantly reduces the complexity and space requirements on the PCB, making it ideal for telecommunications equipment such as channel banks, digital loop carriers, multiplexers, and routers.

Key features of the DS21448A1 include crystal-less jitter attenuation, which eliminates the need for an external crystal and simplifies the design. Its adaptive equalization and loss-of-signal (LOS) detection ensure high-quality signal integrity even over long cable runs or poor line conditions. The device also supports both short-haul and long-haul line build-outs, which provides flexibility in deployment across various physical infrastructures.

The DS21448A1's framer is fully compliant with ANSI T1.403, AT&T Pub 62411, and ITU-I.431 standards for T1, E1, and J1 formats, respectively. It provides diagnostic features such as in-band loopback capabilities and a built-in BERT (Bit Error Rate Tester) for ease of maintenance and troubleshooting.

For design engineers, the DS21448A1 offers a simple interface with microprocessors via an 8-bit parallel port. This allows for easy access to configuration settings, status information, and alarm detection. Additionally, the device operates over a wide temperature range, making it suitable for various environmental conditions.

Maxim Integrated provides comprehensive technical support for the DS21448A1, including detailed datasheets, application notes, and design resources to facilitate rapid development and deployment of T1/E1/J1 communication systems.
