Maxim Integrated MAX1645BEEI Step-Down Controller

The MAX1645BEEI from Maxim Integrated is a high-performance, synchronous step-down controller designed to provide an efficient power management solution for a variety of applications. This advanced controller is specifically engineered to deliver a precise voltage regulation, robust power conversion, and to extend battery life in portable devices. With its compact size and high level of integration, the MAX1645BEEI is an ideal choice for space-constrained environments.

Featuring a wide input voltage range, the MAX1645BEEI can operate from a supply voltage of 5V to 26V, making it versatile enough to accommodate various power sources. Its output voltage is programmable from 0.5V to V<sub>IN, allowing for a broad range of output voltages suitable for driving modern low-voltage digital circuits and microprocessors. The device is capable of delivering output currents up to several amperes, depending on external components and cooling.

The MAX1645BEEI incorporates an internal synchronous rectifier, which significantly improves efficiency by reducing power losses associated with diode rectification. This feature is particularly beneficial in extending battery life in portable applications. Additionally, the controller's high switching frequency, which can be set up to 300kHz, enables the use of small, low-profile inductors and capacitors, further minimizing the overall solution size.

For enhanced system reliability, the MAX1645BEEI includes a comprehensive set of protection features. Overcurrent protection safeguards the device and the load from excessive current draw. Overvoltage and undervoltage lockout functions ensure the controller operates within a safe voltage range. Thermal shutdown protection is also integrated to prevent overheating and potential damage to the controller.

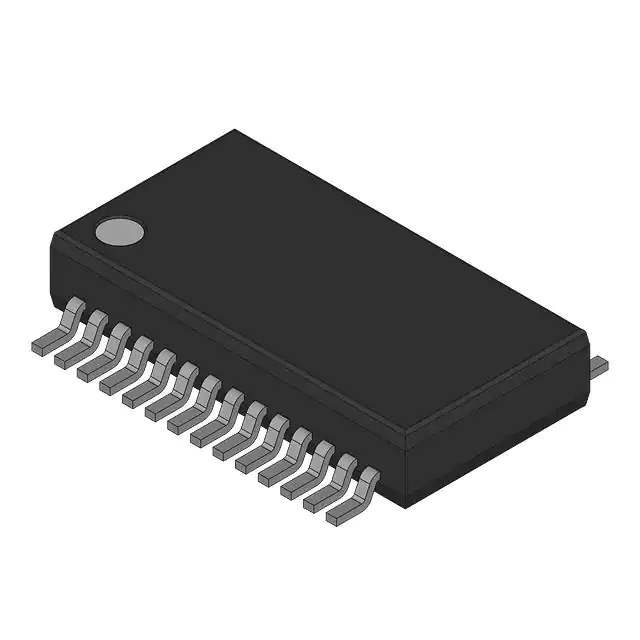

The controller comes in a 28-pin SSOP (Shrink Small Outline Package) which offers a compact footprint while still allowing for manageable soldering and handling during the manufacturing process. Its operating temperature range of -40°C to +85°C ensures reliable performance across a wide range of environmental conditions.

With its advanced features and high efficiency, the MAX1645BEEI step-down controller from Maxim Integrated is an excellent choice for designers looking to optimize power management in their next project.
