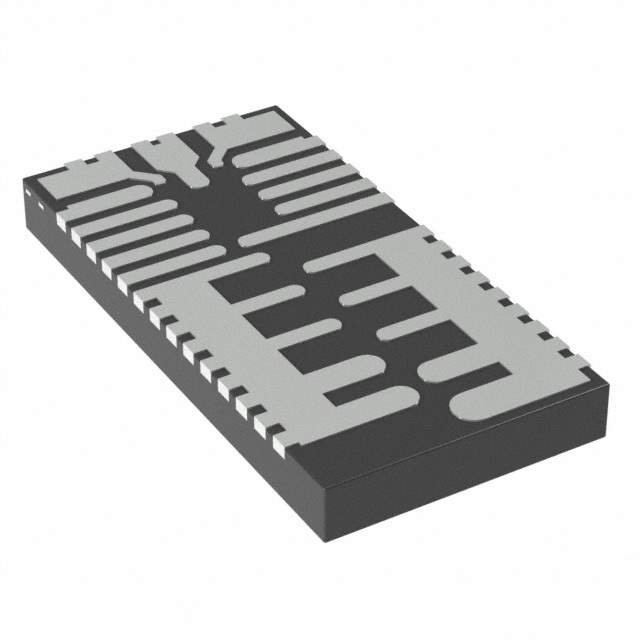

The MAX20734EPL+T from Maxim Integrated is a high-performance, fixed-frequency, step-down integrated power supply (IPS) module. Designed to deliver exceptional efficiency and power density, this device is ideal for a wide range of applications, including networking, telecommunications, and industrial systems. The MAX20734EPL+T offers a compact, reliable power solution that simplifies the design process for engineers by integrating the controller, MOSFETs, inductor, and associated components into a single package.

Key Features

• Integrated Design: Combines controller, MOSFETs, inductor, and compensation in one package for ease of use and high reliability.
• Wide Input Voltage Range: Operates over a broad input voltage range from 4.5V to 16V, accommodating a variety of power sources.
• Adjustable Output Voltage: Provides an adjustable output voltage from 0.5V up to 5.5V, allowing for flexibility across different applications.
• High Efficiency: Offers high efficiency to minimize power loss and thermal footprint, which is critical in high-density designs.
• Thermal Protection: Features over-temperature protection to safeguard the device and the system under extreme conditions.
• Compact Footprint: The small form factor of the package enables designers to maximize board space without sacrificing performance.

Applications

• Networking equipment such as switches and routers
• Telecommunications infrastructure
• Industrial control systems
• Point of load applications

Technical Specifications

The MAX20734EPL+T is a testament to Maxim Integrated's commitment to providing advanced power management solutions that meet the needs of today's complex electronic systems. By integrating multiple components into a single module, this product not only saves space but also reduces the time and cost associated with the design and manufacturing process.
