Maxim Integrated's MAX3747BEUB+T: High-Speed Limiting Amplifier

The MAX3747BEUB+T from Maxim Integrated is a state-of-the-art limiting amplifier designed for high-speed communication applications. This compact, high-performance device is ideal for use in fiber optic receivers, where it amplifies the incoming signal and provides a consistent output regardless of input signal amplitude variations. Its primary use is in the Small Form Factor (SFF) and Small Form-factor Pluggable (SFP) optical modules, which are widely used in data communication and telecommunication networks.

With a wide bandwidth and a high gain of 45dB, the MAX3747BEUB+T ensures that signals are amplified with clarity and precision, making it an excellent choice for systems operating at gigabit speeds. It supports data rates up to 2.7Gbps, catering to a variety of high-speed protocols such as Gigabit Ethernet, Fibre Channel, and SONET/SDH.

The device operates from a single 3.3V supply voltage, making it compatible with a range of industry-standard supply voltages and reducing power consumption in your design. Its low power dissipation is an added advantage for applications where thermal management is a concern.

One of the key features of the MAX3747BEUB+T is its integrated loss-of-signal (LOS) detection circuitry. This feature enables the device to determine when the input signal falls below a specified threshold, which is critical for maintaining the integrity of communication systems. The LOS output can be used to trigger an alarm or initiate other system-level responses when signal conditions deteriorate.

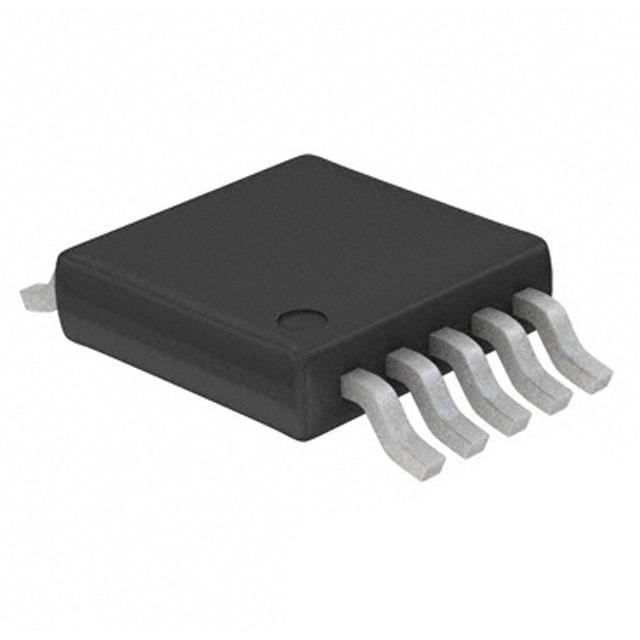

The MAX3747BEUB+T is housed in a compact 10-pin µMAX package, which is highly suited for space-constrained applications. Its small footprint allows for more efficient use of PCB real estate, providing designers with greater flexibility in their layout designs.

Overall, Maxim Integrated's MAX3747BEUB+T limiting amplifier is a reliable and efficient solution for high-speed optical communication. Its robust feature set, including high bandwidth, low power consumption, and integrated LOS detection, makes it an essential component for developers looking to enhance the performance and reliability of their data transmission systems.
