MAX4292EUA - Precision, Low-Power, Single-Supply, Rail-to-Rail Op-Amp

The MAX4292EUA from Maxim Integrated is a high-precision operational amplifier designed for a wide range of applications that demand accuracy and power efficiency. This op-amp operates from a single +2.7V to +6.5V supply, making it ideal for battery-operated devices and portable equipment.

One of the key features of the MAX4292EUA is its rail-to-rail input and output capability, which allows for a wider dynamic range, making it perfect for interfacing with ADCs and DACs that also operate at rail-to-rail voltages. This feature ensures that the op-amp can output voltages very close to the power supply rails, maximizing the signal amplitude without clipping.

The MAX4292EUA boasts a low input offset voltage of 500µV (max) and an input bias current of 1pA, which is critical for precision applications. The device also offers a low quiescent current of 210µA, which is beneficial for extending battery life in portable applications.

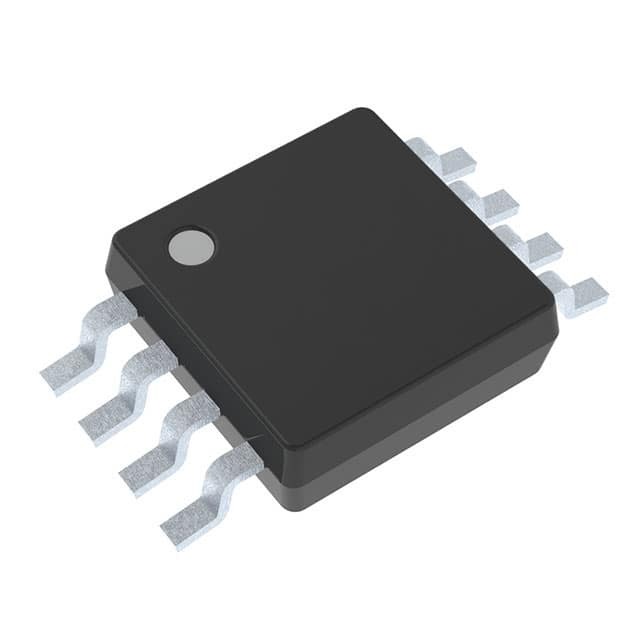

This operational amplifier is available in an 8-pin µMAX package, which is highly compact and suitable for space-constrained designs. The MAX4292EUA is specified for the extended industrial temperature range (-40°C to +85°C), ensuring reliable performance under varying environmental conditions.

Applications for the MAX4292EUA include sensor signal conditioning, portable medical devices, battery-powered instruments, and data acquisition systems, where low voltage operation, low power consumption, and high accuracy are essential. Its precision characteristics also make it suitable for control systems and automotive electronics where stable and reliable operation is required over a broad temperature range.

In summary, the MAX4292EUA from Maxim Integrated is a versatile, efficient, and precise operational amplifier that meets the needs of modern electronic designs that require high performance in a small footprint.
