Maxim Integrated MAX4692EGE-T Analog Switch

The MAX4692EGE-T is a high-performance, low-voltage, single-pole/double-throw (SPDT) analog switch from Maxim Integrated. Designed with precision and reliability in mind, this compact component is a versatile solution for routing analog signals in a variety of applications, including communication systems, data acquisition, and audio/video signal routing.

Key Features

• Low Voltage Operation: The switch operates from a single +1.8V to +5.5V supply, making it suitable for portable and battery-powered devices.
• Low On-Resistance: Featuring a low on-resistance (R<sub>ON) of just 0.5Ω (max) at a +5V supply, the MAX4692EGE-T ensures minimal signal distortion and power loss.
• High Off-Isolation: With a high off-isolation of -65dB at 1MHz, this switch effectively prevents crosstalk between channels when in the off state.
• Fast Switching Times: The device boasts fast switching times of 20ns for turn-on and 10ns for turn-off, making it ideal for applications requiring quick signal changes.
• Low Power Consumption: It has a low power consumption, drawing a sub-microamp quiescent current, which is crucial for power-sensitive designs.
• ESD Protection: The MAX4692EGE-T is designed with ESD protection diodes to all ports, enhancing its robustness in harsh environments.

Applications

• Sample and Hold Circuits
• Audio and Video Signal Routing
• Communication Systems
• Data Acquisition Systems
• Battery-Powered Applications
• Test Equipment

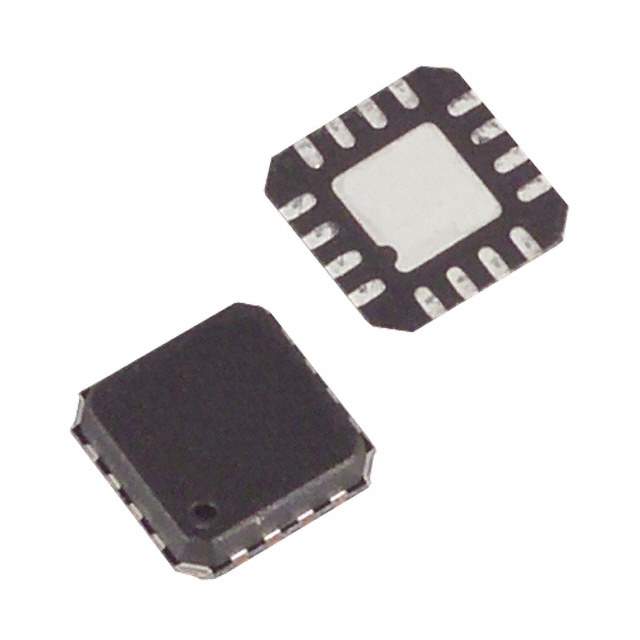

The MAX4692EGE-T comes in a compact 16-pin QSOP package, making it easy to integrate into space-constrained designs. Its extended temperature range of -40°C to +85°C ensures reliable operation across various environments. Whether you're designing a sophisticated audio interface or a simple signal routing circuit, the MAX4692EGE-T from Maxim Integrated provides the performance and reliability needed for your application.

With Maxim Integrated's reputation for high-quality components, the MAX4692EGE-T analog switch is a dependable choice for designers looking to enhance their electronic systems.
