Products specifications

Category Development Boards, Kits, Programmers - Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Mfr Maxim Integrated
Package Box
Product Status Obsolete
Main Purpose DC/DC, Step Down
Outputs and Type 1, Non-Isolated
Voltage - Output 0.7V ~ 5.5V
Current - Output 25A
Voltage - Input 4.5V ~ 20V
Regulator Topology Buck
Frequency - Switching 300kHz ~ 1MHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part MAX8686
Base Product Number MAX868
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 925695-MAX8686EVKIT+
Ultra Librarian 3D Model Ultra Librarian MAX8686EVKIT+ CAD Model

Description

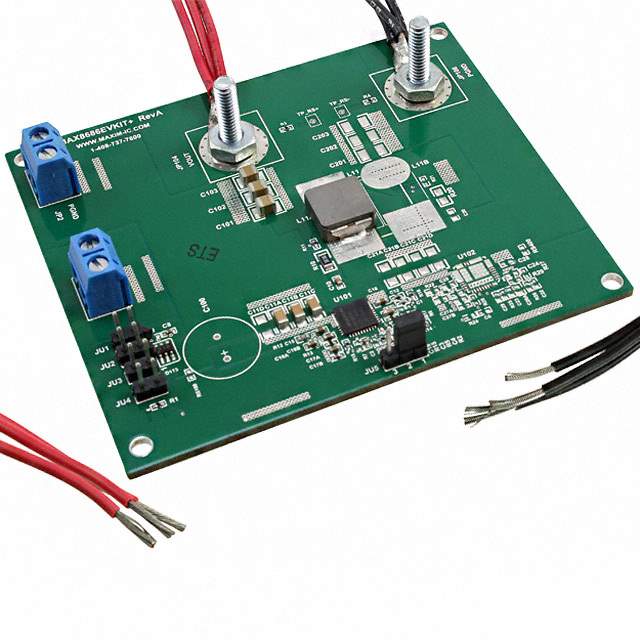

The MAX8686EVKIT+ from Maxim Integrated is a comprehensive evaluation kit designed to demonstrate the performance and capabilities of the MAX8686 series of step-down controllers. This evaluation kit provides engineers and designers an efficient platform for testing and prototyping power management solutions for a wide range of applications.

Key Features

  • High-Efficiency Step-Down Controller: The MAX8686 step-down controller delivers high efficiency and is optimized for converting a high input voltage to a lower output voltage with excellent transient response.
  • Adjustable Output: The evaluation kit allows for an adjustable output voltage, providing flexibility to test the controller with various output requirements.
  • Integrated MOSFET Drivers: With built-in MOSFET drivers, the MAX8686EVKIT+ simplifies design and reduces external component count.
  • Thermal Management: The evaluation board is designed with thermal performance in mind, ensuring reliable operation under varying load conditions.
  • Comprehensive Protection Features: The kit includes overvoltage, undervoltage, and overcurrent protection, safeguarding the system during testing.
  • Easy-to-Use: The evaluation kit comes with user-friendly features such as pre-installed jumpers and test points, facilitating easy setup and measurement.

Applications

The MAX8686EVKIT+ is ideal for developing power solutions for a variety of applications, including:

  • Telecommunications Equipment
  • Networking and Data Communication Systems
  • Servers and Storage Systems
  • Industrial Power Supplies

Package Contents

The evaluation kit includes:

  • MAX8686 Evaluation Board
  • Detailed Documentation

With the MAX8686EVKIT+, designers can quickly evaluate the performance of the MAX8686 step-down controller and expedite the development cycle for their power management needs. Maxim Integrated's commitment to quality and innovation is evident in this versatile and reliable evaluation kit.
