MAXM15062EVKIT# Evaluation Kit by Maxim Integrated

The MAXM15062EVKIT# from Maxim Integrated is a comprehensive evaluation kit designed for assessing the performance and capabilities of the MAXM15062, a high-efficiency, synchronous step-down DC-DC module. This compact and integrated module is ideal for a wide range of applications, including distributed power systems, industrial, communications, and consumer electronics where space is at a premium and ease of use is critical.

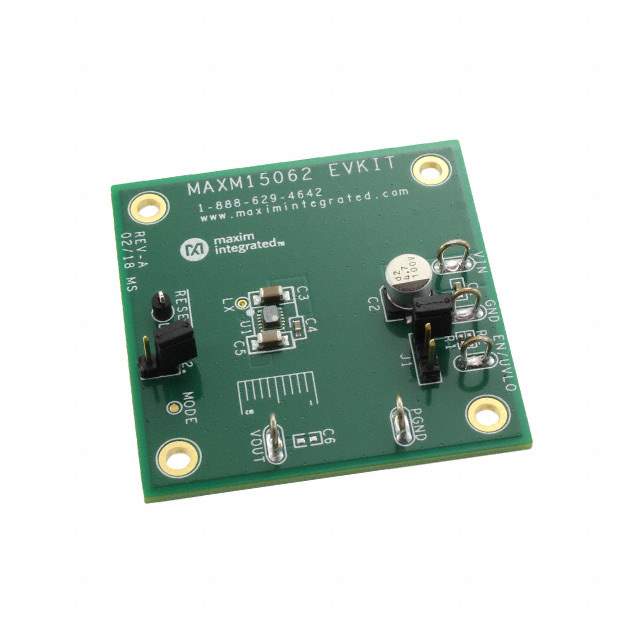

The evaluation kit includes a fully assembled and tested circuit board that allows designers to quickly evaluate the features and performance of the MAXM15062 module. With an input voltage range of 4.5V to 42V, the module is versatile enough to handle a variety of input sources, making it suitable for diverse electrical environments.

The MAXM15062 module itself is capable of delivering up to 0.9A of output current, and it features an adjustable output voltage from 0.9V up to 0.9V less than the input voltage, providing flexibility in designing power supplies for different voltage requirements. Its high efficiency, up to 92%, helps to minimize heat generation and energy loss, contributing to the overall reliability and performance of the end application.

The evaluation kit is designed with user convenience in mind, featuring test points that provide easy access to all critical signals and voltages. It also includes jumpers and headers for easy configuration and modification of the circuit, allowing for thorough testing and optimization of the module's performance in various conditions.

The MAXM15062EVKIT# comes with comprehensive documentation, including a detailed user guide that covers the installation, setup, and operation of the evaluation kit. This documentation also provides schematic diagrams, bill of materials, and PCB layout files, which can be invaluable resources for designers looking to integrate the MAXM15062 module into their own projects.

Overall, the MAXM15062EVKIT# is a must-have tool for engineers and designers seeking to leverage the high efficiency and compact footprint of the MAXM15062 synchronous step-down DC-DC module in their power supply designs.
