The MAXM22511EVKIT# from Maxim Integrated is a comprehensive evaluation kit designed for the MAXM22511 transceiver module. This advanced tool offers engineers an efficient way to explore the features and capabilities of the MAXM22511, which integrates a 2.5kV isolated RS-485/RS-422 transceiver with an integrated transformer driver.

The evaluation kit is an essential resource for developers working on industrial communication systems, particularly those requiring high levels of electrical isolation and robust data transmission. The MAXM22511 module at the heart of the kit is suitable for a wide range of applications, such as fieldbus communications for industrial automation, motor control systems, and other harsh electrical environments where signal integrity and isolation are critical.

Key Features

• Integrated Solution: Combining an isolated RS-485/RS-422 transceiver and transformer driver, the MAXM22511 simplifies design and reduces board space.
• High Isolation: With a 2.5kV RMS isolation rating for 60 seconds, the module provides excellent protection against high-voltage transients.
• Performance: The transceiver supports data rates up to 25Mbps, enabling fast and reliable communication in industrial environments.
• Flexibility: The evaluation kit includes configurable options for half-duplex and full-duplex operation, allowing for versatile application testing.
• User-Friendly: The kit comes with an easy-to-use graphical user interface (GUI) that facilitates quick evaluation and testing of the transceiver module.

Package Contents

• MAXM22511 transceiver module

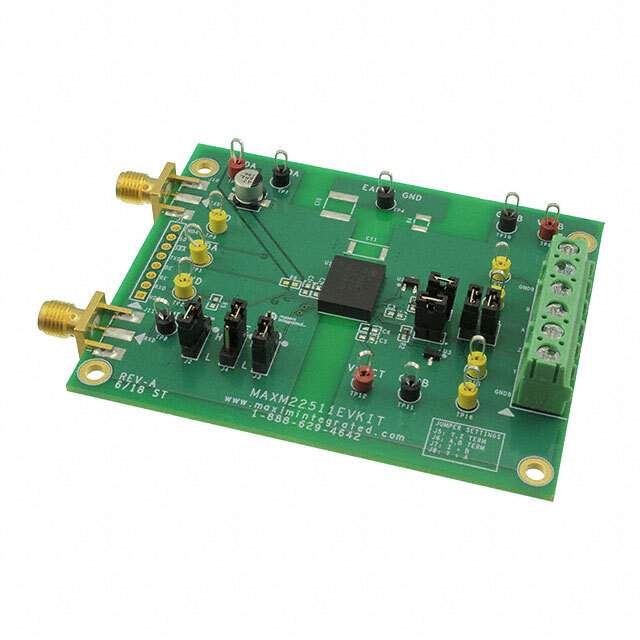

• Pre-configured evaluation board
• USB interface for PC connectivity and GUI operation
• Comprehensive documentation including user manual and schematics

The MAXM22511EVKIT# is a powerful tool for engineers and designers looking to evaluate the MAXM22511 transceiver module's performance and integrate it into their own designs with confidence. With its robust feature set and user-friendly interface, the evaluation kit serves as an invaluable asset for accelerating development time and ensuring a successful implementation of the MAXM22511 in any compatible industrial communication system.
