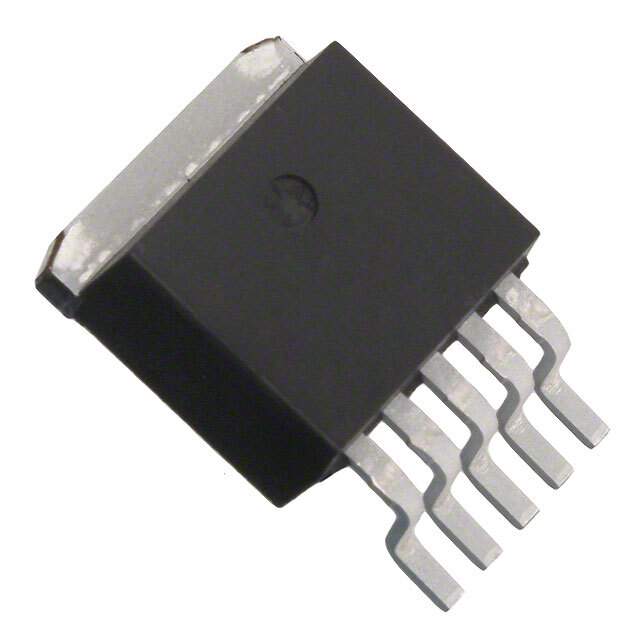

The SPX29501T5-L-5-0/TR is a 500mA low dropout (LDO) voltage regulator manufactured by MaxLinear (previously Sipex). It is designed to provide a stable and regulated 5V output voltage from a wide range of input voltages. This LDO regulator is ideal for battery-powered applications and other systems requiring efficient voltage regulation.

Applications

• Battery-powered devices
• Microprocessor power supplies
• Post-regulation for switching power supplies
• Portable electronics
• Industrial control systems

Features

• Low dropout voltage (typically 300mV at 500mA)
• 500mA output current capability
• Stable with ceramic output capacitors
• Short circuit and thermal overload protection
• Reverse battery protection
• Fixed 5V output voltage

Benefits

• Extended battery life due to high efficiency
• Stable and reliable output voltage
• Reduced external component count
• Protection against damage from short circuits and overheating
• Prevention of damage from reverse battery connections
• Simplified design with fixed output voltage

Technical Specifications

The SPX29501T5-L-5-0/TR features a low dropout voltage, typically 300mV at the full 500mA output current. This low dropout voltage allows the regulator to operate with a minimal difference between the input and output voltages, maximizing efficiency and extending battery life. The regulator is stable with ceramic output capacitors, which are smaller and less expensive than electrolytic capacitors. It also includes short circuit and thermal overload protection to prevent damage from overcurrent and overheating conditions. The reverse battery protection feature prevents damage if the battery is connected with the wrong polarity. The fixed 5V output voltage simplifies the design process and ensures a stable and regulated output.

MaxLinear's SPX29501T5-L-5-0/TR is a reliable and efficient LDO voltage regulator that provides a stable 5V output voltage in a wide range of applications. Its low dropout voltage, stability with ceramic capacitors, and protection features make it an ideal choice for battery-powered devices and other systems requiring efficient and reliable voltage regulation.
