Same model may have multiple batches, images only for reference.

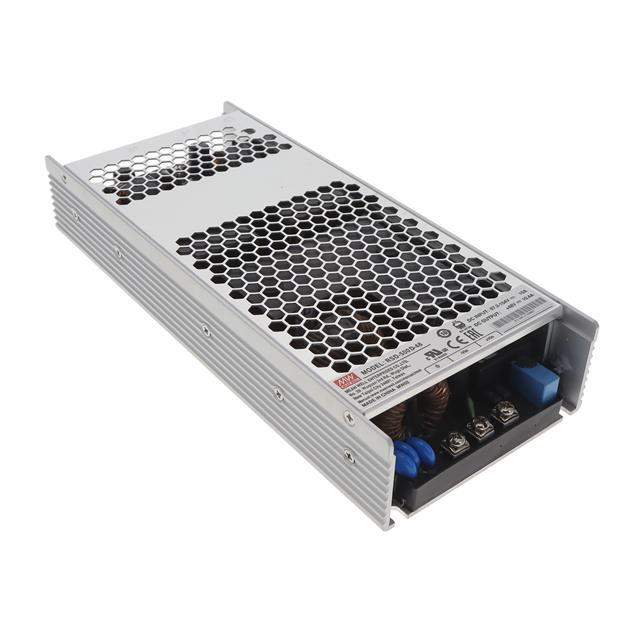

RSD-500D-24 Real Image
Same model may have multiple batches, images only for reference.

RSD-500D-24

Part No RSD-500D-24
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) DC DC Converters
Description DC/DC CONVERTER 24V 499W / Enclosed DC DC Converter 1 Output 24V 20.8A 154V Input
Datasheet
RSD-500D-24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - DC DC Converters
Mfr MEAN WELL USA Inc.
Series RSD-500 (500W)
Package Box
Type Enclosed
Voltage - Input (Min) 67.2V
Voltage - Input (Max) 154V
Number of Outputs 1
Voltage - Output 1 24V
Current - Output (Max) 20.8A
Power (Watts) 499W
Voltage - Isolation 4 kV
Applications ITE (Commercial) , Railway
Efficiency 93%
Temperature Range - Operating -40°C ~ 80°C (With Derating)
Mounting Type Chassis Mount
Size / Dimension 9.33" L x 3.94" W x 1.61" H (237.0mm x 100.0mm x 41.0mm)
Approval Agency CB, CE, cURus, EAC, RCM
Base Product Number RSD-500
Standard Package 10
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1336908-RSD-500D-24
Ultra Librarian 3D Model Ultra Librarian RSD-500D-24 CAD Model

Description

The RSD-500D-24 is a 500W DC-DC converter from the RSD-500 series of enclosed power supplies manufactured by MEAN WELL.

  • Voltage Isolation: 4kV
  • Efficiency: 93%
  • Number of Outputs: Single
  • Current Output: 20.8A
  • Output Voltage: 24V
  • Input Voltage: Ranges from 67.2V to 154V
  • Application: ITE (Commercial) and railway applications
  • Mounting Type: Chassis Mount
  • Operating Temperature Range: -40°C to 80°C with derating
  • Approvals: CB, CE, cURus, EAC, and RCM agencies
  • Package Quantity: 10 units
