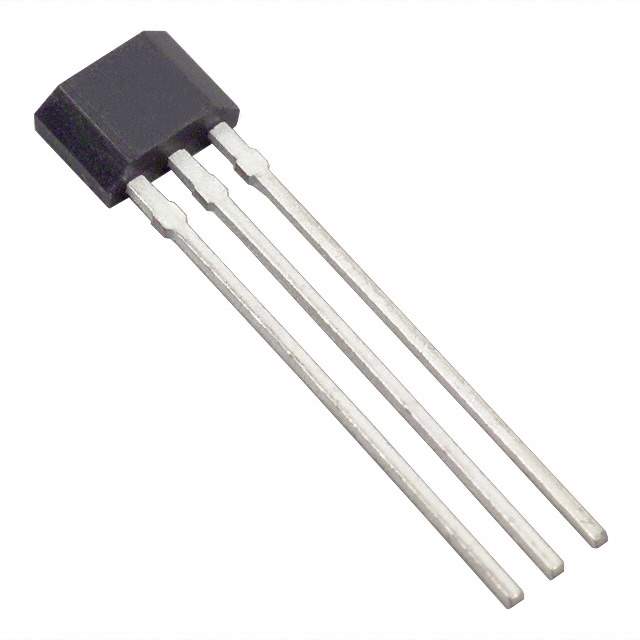

MLX92241LUA-BAA-112-CA Real Image1 MLX92241LUA-BAA-112-CA Real Image2
Same model may have multiple batches, images only for reference.
MLX92241LUA-BAA-112-CA Real Image1 MLX92241LUA-BAA-112-CA Real Image2
MLX92241LUA-BAA-112-CA Real Image1 MLX92241LUA-BAA-112-CA Real Image2
Same model may have multiple batches, images only for reference.

MLX92241LUA-BAA-112-CA

Part No MLX92241LUA-BAA-112-CA
Manufacturer Melexis Technologies NV
Catalog Magnetic Sensors - Switches (Solid State)
Description MAGNETIC SWITCH LATCH TO92UA / Digital Switch Unipolar Switch Current Source Hall Effect TO-92-3
Datasheet
MLX92241LUA-BAA-112-CA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors>Switches (Solid State)
Mfr Melexis Technologies NV
Series Automotive, AEC-Q100
Package Cut Tape (CT)Tape & Box (TB)
Function Unipolar Switch
Technology Hall Effect
Polarization North Pole
Sensing Range -2.5mT Trip, -3.7mT Release
Test Condition 25°C
Voltage - Supply 2.7V ~ 24V
Current - Supply (Max) 17mA
Current - Output (Max) -
Output Type Current Source
Features Temperature Compensated
Temperature Range - Operating -40°C ~ 150°C
Mounting Type Through Hole
Supplier Device Package TO-92-3
Package / Case TO-226-3, TO-92-3 Short Body
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
Standard Package 7,500 pcs
Win Source Part Number 1382903-MLX92241LUA-BAA-112-CA
Ultra Librarian 3D Model Ultra Librarian MLX92241LUA-BAA-112-CA CAD Model

Description

The MLX92241LUA-BAA-112-CA is a unipolar switch magnetic sensor in a TO-92-3 package.

  • Voltage Supply: 2.7V to 24V
  • Supply Current: 17mA (Max)
  • Sensing Range: -2.5mT (Trip), -3.7mT (Release)
  • Polarization: North Pole
  • Features: Temperature Compensation
  • AEC-Q100: Yes
  • Operating Temperature: -40°C to 150°C
  • Manufacturer: Melexis Technologies NV
